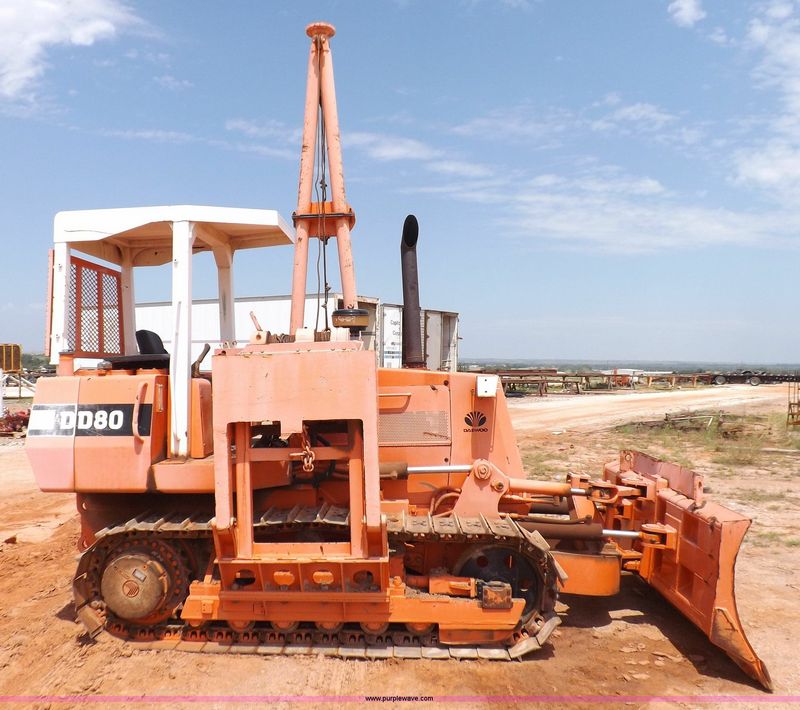

Daewoo DD80
Browse All Daewoo or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 13.68 ft in (4169 mm) |
| Width Over Tracks | 6.49 ft in (1977 mm) |
| Height To Top Of Cab | 8.96 ft in (2729 mm) |
| Length Of Track On Ground | 6.75 ft in (2055 mm) |
| Ground Clearance | 1.37 ft in (415 mm) |
| Length W/O Blade | 9.32 ft in (2840 mm) |
Undercarriage
| Track Gauge | 4.99 ft in (1520 mm) |
| Standard Shoe Size | 18 in (457.2 mm) |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Pressure | 5.26 psi (36.27 kPa) |
| Ground Contact Area | 2911 in2 (1.88 m2) |
| Number Of Shoes Per Side | 39 |
| Number Of Track Rollers Per Side | 6 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2253 |
| Engine Model | DB58 |
| Net Power | 89 hp (66.4 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 239 lb ft (324.1 Nm) |
| Displacement | 353 cu in (5.8 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 17526.8 lb (7950 kg) |
| Fuel Capacity | 70.1 gal (265 L) |
| Cooling System Fluid Capacity | 3.8 gal (14.2 L) |
| Engine Oil Capacity | 3.2 gal (12 L) |
| Hydraulic Fluid Capacity | 32 gal (121 L) |
| Final Drives Fluid Capacity | 1.2 gal (4.5 L) |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 7.3 mph (11.7 km/h) |
| Max Speed - Reverse | 7.3 mph (11.7 km/h) |
Hydraulic System
| Pump Type | gear |
| Relief Valve Pressure | 2770 psi (19098.5 kPa) |
Standard Blade
| Width | 8.9 ft in (2704 mm) |
| Capacity | 2 yd3 (1.5 m3) |
| Cutting Depth | 13.3 in (336 mm) |
