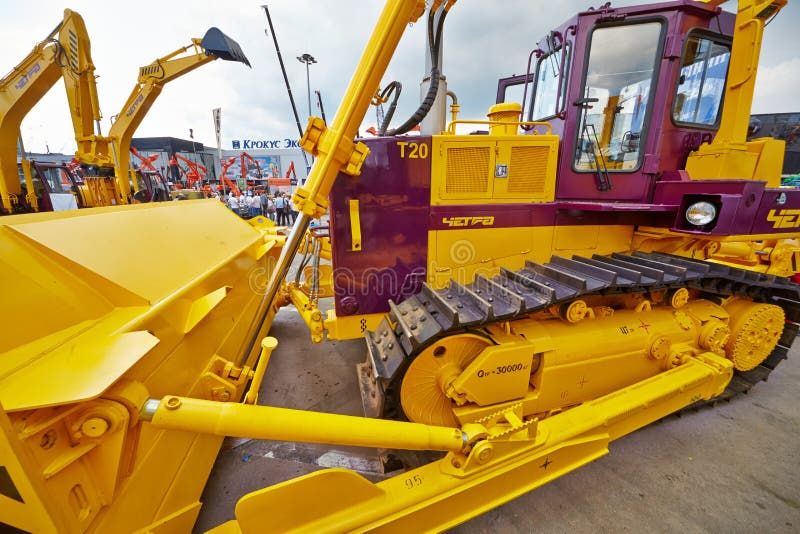

Chetra T20
Browse All Chetra or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 25.6 ft in (7800 mm) |
| Width Over Tracks | 8.73 ft in (2660 mm) |
| Height To Top Of Cab | 12.13 ft in (3695 mm) |
| Length Of Track On Ground | 10.08 ft in (3070 mm) |
| Ground Clearance | 1.76 ft in (535 mm) |
Undercarriage
| Track Gauge | 6.89 ft in (2100 mm) |
| Standard Shoe Size | 22.05 in (560 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | M11-C330 |
| Gross Power | 292 hp (217.8 kw) |
| Power Measured @ | 2100 rpm |
Operational
| Operating Weight | 79366.5 lb (36000 kg) |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.8 mph (10.9 km/h) |
| Max Speed - Reverse | 8.7 mph (14 km/h) |
Standard Blade
| Width | 13 ft in (3940 mm) |
| Height | 67 in (1700 mm) |
| Capacity | 13.1 yd3 (10 m3) |
| Blade Angle (Both Directions) | 10 degrees |
| Cutting Depth | 23.3 in (590 mm) |
