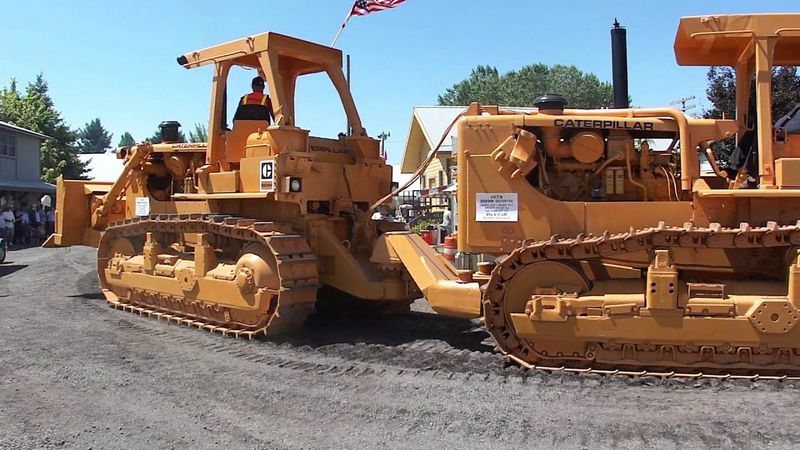

Caterpillar DD9H
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 42.5 ft in (12954 mm) |
| Width Over Tracks | 9.91 ft in (3020 mm) |
| Height To Top Of Cab | 13.25 ft in (4038 mm) |
| Length Of Track On Ground | 11.01 ft in (3353 mm) |
| Ground Clearance | 1.17 ft in (356 mm) |
| Length W/O Blade | 38.25 ft in (11659 mm) |
Undercarriage
| Track Gauge | 7.52 ft in (2290 mm) |
| Standard Shoe Size | 24.02 in (610 mm) |
| Number Of Track Rollers Per Side | 7 |
Engine
| Engine Model | D353(2) |
| Gross Power | 820 hp (611.5 kw) |
| Displacement | 1470.7 cu in (24.1 L) |
Operational
| Operating Weight | 185430.9 lb (84110 kg) |
| Fuel Capacity | 229.9 gal (870 L) |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.6 mph (10.5 km/h) |
| Max Speed - Reverse | 8.3 mph (13.2 km/h) |
