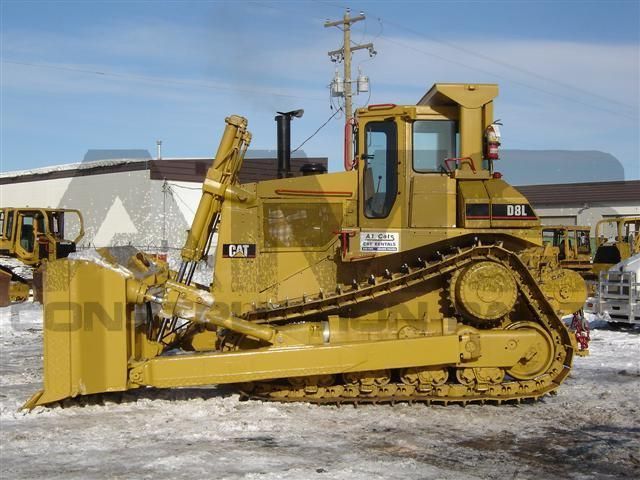

Caterpillar D8L
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 20.41 ft in (6220 mm) |
| Width Over Tracks | 9.32 ft in (2840 mm) |
| Height To Top Of Cab | 12.7 ft in (3870 mm) |
| Length Of Track On Ground | 10.57 ft in (3220 mm) |
| Ground Clearance | 1.5 ft in (456 mm) |
| Length W/O Blade | 16.25 ft in (4950 mm) |
Undercarriage
| Track Gauge | 7.49 ft in (2280 mm) |
| Standard Shoe Size | 22.05 in (560 mm) |
| Ground Contact Area | 5564.52 in2 (3.59 m2) |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 15.06 psi (103.8 kPa) |
Engine
| Engine Make | 2236 |
| Engine Model | 3408 |
| Gross Power | 335 hp (249.9 kw) |
| Displacement | 1098.5 cu in (18 L) |
Operational
| Operating Weight | 84011.6 lb (38107 kg) |
| Fuel Capacity | 199 gal (753 L) |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.4 mph (11.9 km/h) |
| Max Speed - Reverse | 9.2 mph (14.8 km/h) |
Standard Blade
| Width | 13.7 ft in (4170 mm) |
| Height | 71 in (1803 mm) |
| Capacity | 14.4 yd3 (11 m3) |
| Cutting Depth | 25.9 in (657 mm) |
