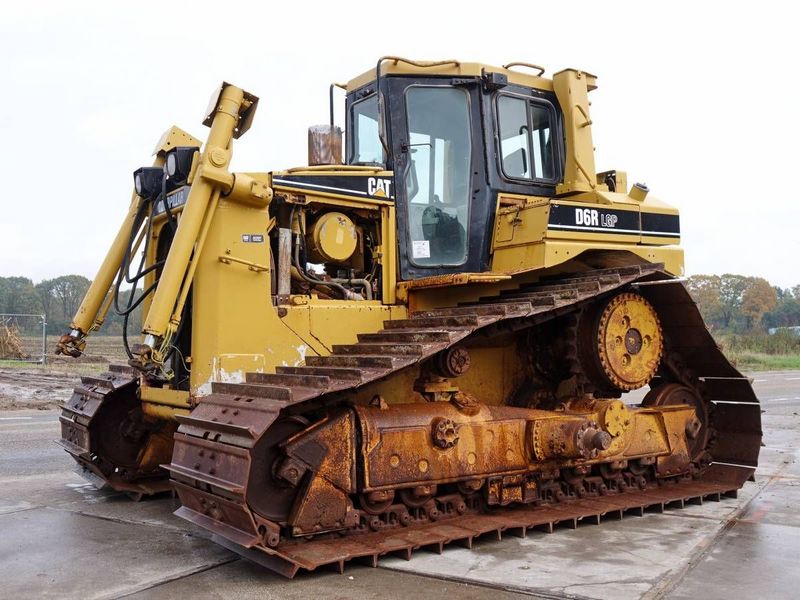

Caterpillar D6R IG
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 17.5 ft in (5332 mm) |
| Width Over Tracks | 8.99 ft in (2740 mm) |
| Height To Top Of Cab | 10.49 ft in (3195 mm) |
| Length Of Track On Ground | 9.26 ft in (2821 mm) |
| Ground Clearance | 1.26 ft in (383 mm) |
| Length W/O Blade | 12.67 ft in (3860 mm) |
Undercarriage
| Track Gauge | 6.67 ft in (2030 mm) |
| Standard Shoe Size | 30 in (762 mm) |
| Number Of Shoes Per Side | 41 |
| Ground Pressure | 6.52 psi (44.96 kPa) |
| Ground Contact Area | 6665 in2 (4.3 m2) |
| Number Of Track Rollers Per Side | 7 |
| Track Pitch | 8 in (203 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3306 |
| Gross Power | 199 hp (148.4 kw) |
| Net Power | 185 hp (138 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 638 cu in (10.5 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 43500 lb (19731.3 kg) |
| Fuel Capacity | 101.2 gal (383 L) |
| Cooling System Fluid Capacity | 19.6 gal (74 L) |
| Engine Oil Capacity | 7.3 gal (27.5 L) |
| Hydraulic Fluid Capacity | 20.1 gal (76 L) |
| Powertrain Fluid Capacity | 41 gal (155 L) |
| Final Drives Fluid Capacity | 3.6 gal (13.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.4 mph (12 km/h) |
| Max Speed - Reverse | 9.5 mph (15.3 km/h) |
Hydraulic System
| Pump Type | Piston Style |
| Relief Valve Pressure | 2800 psi (19305.4 kPa) |
| Pump Flow Capacity | 50.2 gal/min (190 L/min) |
Standard Blade
| Width | 11.7 ft in (3556 mm) |
| Height | 55.6 in (1412 mm) |
| Capacity | 7.4 yd3 (5.7 m3) |
| Cutting Depth | 18.1 in (459 mm) |
