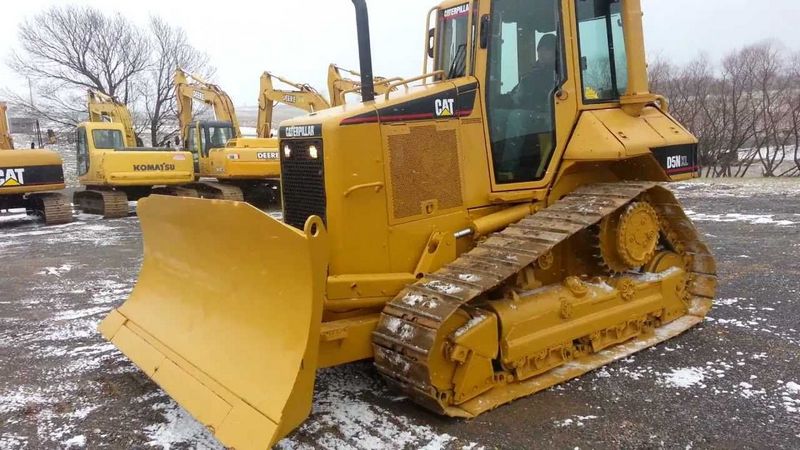

Caterpillar D5N
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 11.63 ft in (3544 mm) |
| Width Over Tracks | 7.65 ft in (2330 mm) |
| Height To Top Of Cab | 9.83 ft in (2995 mm) |
| Length Of Track On Ground | 7.84 ft in (2388 mm) |
| Ground Clearance | 1.24 ft in (377.96 mm) |
Undercarriage
| Track Gauge | 5.81 ft in (1770 mm) |
| Standard Shoe Size | 22.05 in (560 mm) |
| Number Of Shoes Per Side | 41 |
| Ground Pressure | 6.88 psi (47.4 kPa) |
| Ground Contact Area | 4138.51 in2 (2.67 m2) |
| Number Of Track Rollers Per Side | 7 |
Engine
| Engine Make | 2236 |
| Engine Model | 3126B DITAAC |
| Net Power | 121 hp (90.3 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 439.4 cu in (7.2 L) |
Operational
| Operating Weight | 28082 lb (12737.8 kg) |
| Fuel Capacity | 67.9 gal (257 L) |
| Cooling System Fluid Capacity | 9.8 gal (37 L) |
| Hydraulic Fluid Capacity | 7.8 gal (29.5 L) |
| Final Drives Fluid Capacity | 1.6 gal (6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.2 mph (10 km/h) |
| Max Speed - Reverse | 6.9 mph (11.2 km/h) |
Standard Blade
| Width | 10.1 ft in (3077 mm) |
| Height | 43.7 in (1109 mm) |
| Capacity | 3.5 yd3 (2.6 m3) |
| Cutting Depth | 17 in (430 mm) |
