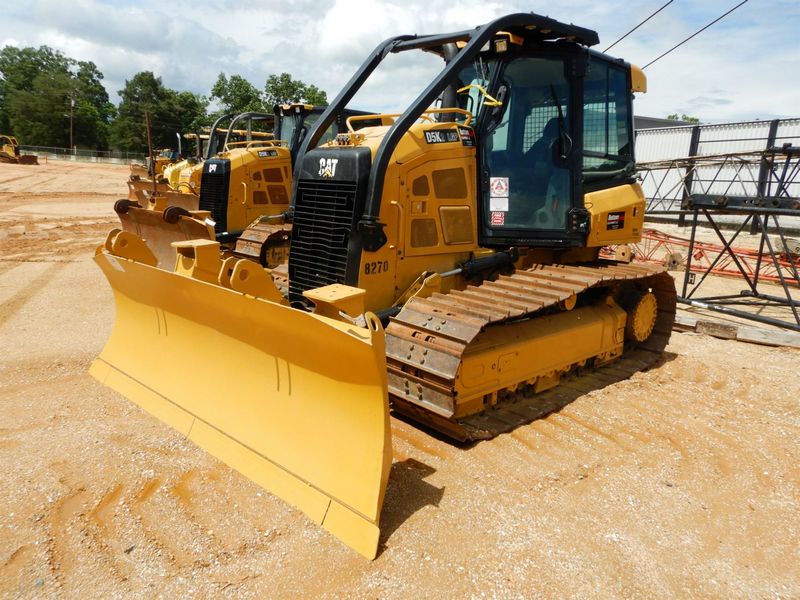

Caterpillar D5K2
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 170 ft in (51816 mm) |
| Width Over Tracks | 94.9 ft in (28925.52 mm) |
| Height To Top Of Cab | 109 ft in (33223.2 mm) |
| Length Of Track On Ground | 128.5 ft in (39166.81 mm) |
| Length W/O Blade | 128.5 ft in (39166.81 mm) |
Undercarriage
| Ground Pressure - Lgp | 4.5 psi |
| Ground Pressure - Lgp With 770 Mm (30 In) Shoes | 3.93 psi |
| Ground Pressure - Xl | 5.6 psi |
| Length - Track On Ground - Lgp | 91 in (2311.4 mm) |
| Length - Track On Ground - Xl | 91 in (2311.4 mm) |
| Shoe Width - Lgp | 26 in (660.4 mm) |
| Shoe Width - Lgp Option 2 | 30 in (762 mm) |
| Shoe Width - Xl | 20 in (508 mm) |
| Track Gauge - Lgp | 69 in (1752.6 mm) |
| Track Gauge - Lgp, 770 Mm (30 In) | 73.2 in (1859.28 mm) |
| Track Gauge - Xl | 63 in (1600.2 mm) |
| Ground Contact Area - Lgp With 770 Mm (30 In) Shoes | 5514 in2 (3.56 m2) |
| Ground Contact Area - Lgp | 4726 in2 (3.05 m2) |
| Ground Contact Area - Xl | 3652 in2 (2.36 m2) |
| Ground Pressure | 2988 psi (20601.52 kPa) |
Ripper
| Ripper Type | Parallelogram |
| Number Of Shanks | 3 |
| Maximum Digging Depth | 13.3 in (337.9 mm) |
| Maximum Reach - Ground Line | 21.9 in (556.3 mm) |
| Maximum Ground Clearance Under Tip | 17.6 in (447.1 mm) |
| Overall Width | 67.3 in (1709.5 mm) |
| Height | 6.5 in (165.1 mm) |
| Weight | 1222 lb (554.3 kg) |
Engine
| Engine Make | 2236 |
| Engine Model | Cat C4.4 Acert |
| Gross Power | 104 hp (77.6 kw) |
| Net Power | 104 hp (77.6 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 269 cu in (4.5 L) |
| Bore | 4.2 in (105 mm) |
| Stroke | 5 in (127 mm) |
| Engine Model | Cat C4.4 ACERT |
| Eec 80/1269 | 104 hp (77.6 kw) |
| Sae J1349 | 104 hp (77.6 kw) |
| Iso 9249 | 104 hp (77.6 kw) |
| Power - Net | 104 hp (77.6 kw) |
Operational
| Operating Weight | 20313 lb (9213.9 kg) |
| Fuel Capacity | 51.5 gal (195 L) |
| Cooling System Fluid Capacity | 6 gal (22.5 L) |
| Engine Oil Capacity | 4.9 gal (18.6 L) |
| Hydraulic Fluid Capacity | 15.7 gal (59.5 L) |
| Powertrain Fluid Capacity | 3 gal (11.1 L) |
| Final Drives Fluid Capacity | 2.6 gal (9.9 L) |
Transmission
| Transmission Type | 2 |
| Max Speed - Forward | 5.6 mph (9.1 km/h) |
| Max Speed - Reverse | 6.2 mph (10 km/h) |
| Drive Pumps | 2 |
| Track Motors | 2 |
| Relief Valve Settings | 6918 psi |
| Maximum Travel Speed - Forward | 5.6 mph (9.1 km/h) |
| Maximum Travel Speed - Reverse | 6.2 mph (10 km/h) |
Weights
| Operating Weight - Lgp | 21266 lb (9646.1 kg) |
| Operating Weight - Xl | 20534 lb (9314.1 kg) |
Blade
| Blade Width - Xl | 109.5 in (2781.3 mm) |
| Blade Width - Intermediate | 115 in (2921 mm) |
| Blade Width - Lgp | 126.7 in (3218.2 mm) |
| Blade Height - Xl | 42.2 in (1071.9 mm) |
| Blade Height - Intermediate | 39.8 in (1011 mm) |
| Blade Height - Lgp | 39.8 in (1011 mm) |
| Blade Capacity - Xl | 2.9 yd3 (2.2 m3) |
| Blade Capacity - Intermediate | 2.8 yd3 (2.1 m3) |
| Blade Capacity - Lgp | 3.1 yd3 (2.4 m3) |
| Digging Depth - Xl | 23.1 in (586.8 mm) |
| Digging Depth - Intermediate | 22.5 in (571.5 mm) |
| Digging Depth - Lgp | 22.5 in (571.5 mm) |
Standard Blade
| Width | 109.5 ft in (33375.6 mm) |
| Blade Angle (Both Directions) | 75 degrees |
Service Refill Capacities
| Cooling System | 6 gal (22.5 L) |
| Fuel Tank | 51.5 gal (195 L) |
| Final Drive - Each - Lgp | 2.6 gal (9.9 L) |
| Final Drive - Each - Xl | 2.6 gal (9.9 L) |
| Crankcase - With Filter | 3 gal (11.1 L) |
| Transmission - Hydraulic Tank | 15.7 gal (59.5 L) |
Standards
| Rops | SAE J397-OCT95, SAE J1040-MAY94, ISO 3471-94, ISO 3164-95 |
| Fops | SAE J231-JAN81, ISO 3449-92 |
Hydraulic Controls
| Pump Output | 19.4 gal/min |
| Relief Valve Setting | 2988 psi |
Winch
| Winch Drive | Hydrostatic |
| Control | Hydraulic |
| Overall Width | 29.2 in (741.7 mm) |
| Drum Diameter | 10 in (254 mm) |
| Drum Width | 10.8 in (274.4 mm) |
| Rope Diameter - Recommended | 0.7 in (16.1 mm) |
| Weight | 1345 lb (610.1 kg) |
| Rope Diameter - Optional | 0.8 in (19.1 mm) |
| Speed | Variable |
| Winch Length | 27.8 in (705.2 mm) |
| Throat Clearance | 6.8 in (171.5 mm) |
| Drum Capacity - Recommended Cable | 371 ft in (113.1 m) |
| Drum Capacity - Optional Cable | 256 ft in (78.1 m) |
| Maximum Line Pull - Bare Drum | 40000 lb (18143.7 kg) |
| Maximum Line Pull - Full Drum | 25000 lb (11339.9 kg) |
| Maximum Line Speed - Bare Drum | 131 ft/min |
| Maximum Line Speed - Full Drum | 207 ft/min |
