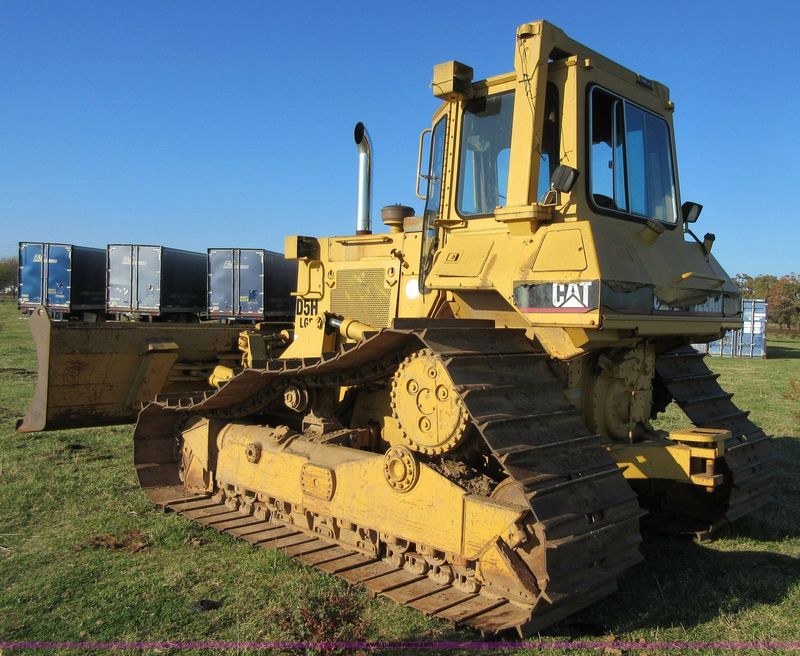

Caterpillar D5H LGP
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 17.39 ft in (5300 mm) |
| Width Over Tracks | 9.91 ft in (3020 mm) |
| Height To Top Of Cab | 10.07 ft in (3069 mm) |
| Length Of Track On Ground | 10.24 ft in (3121 mm) |
| Ground Clearance | 1.46 ft in (444 mm) |
| Length W/O Blade | 13.55 ft in (4130 mm) |
Undercarriage
| Track Gauge | 7.09 ft in (2160 mm) |
| Standard Shoe Size | 33.86 in (860 mm) |
| Number Of Shoes Per Side | 46 |
| Ground Pressure | 3.88 psi (26.76 kPa) |
| Ground Contact Area | 8308.02 in2 (5.36 m2) |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3304 |
| Gross Power | 129 hp (96.2 kw) |
| Net Power | 120 hp (89.5 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 427.2 cu in (7 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 32380 lb (14687.4 kg) |
| Fuel Capacity | 65 gal (246 L) |
| Cooling System Fluid Capacity | 7.4 gal (27.9 L) |
| Engine Oil Capacity | 4.8 gal (17.8 L) |
| Hydraulic Fluid Capacity | 18.5 gal (70 L) |
| Final Drives Fluid Capacity | 1.9 gal (7 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
Transmission
| Transmission Type | Planetary powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.3 mph (10 km/h) |
| Max Speed - Reverse | 7.8 mph (12.5 km/h) |
Hydraulic System
| Pump Type | Load sensing hydraulics, variable displacement piston pump |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 28.8 gal/min (108.8 L/min) |
Standard Blade
| Width | 13.1 ft in (3980 mm) |
| Height | 40.4 in (1025 mm) |
| Capacity | 4.2 yd3 (3.2 m3) |
| Cutting Depth | 19.4 in (491 mm) |
