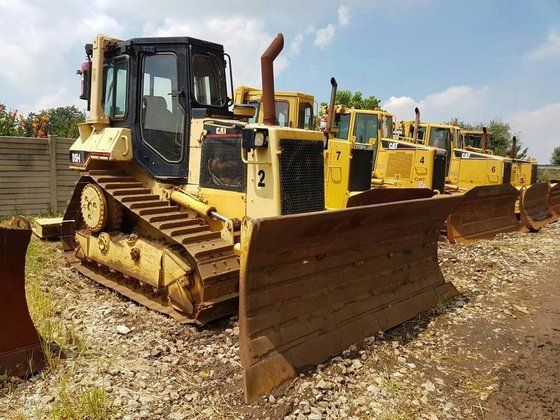

Caterpillar D5E
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Height To Top Of Cab | 9.68 ft in (2950 mm) |
| Ground Clearance | 0.91 ft in (277 mm) |
Undercarriage
| Track Gauge | 4.99 ft in (1520 mm) |
| Number Of Track Rollers Per Side | 6 |
Engine
| Engine Model | 3306 |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Operating Weight | 25800 lb (11702.7 kg) |
| Fuel Capacity | 78 gal (295 L) |
Transmission
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 6.9 mph (11.2 km/h) |
| Max Speed - Reverse | 6.3 mph (10.2 km/h) |
