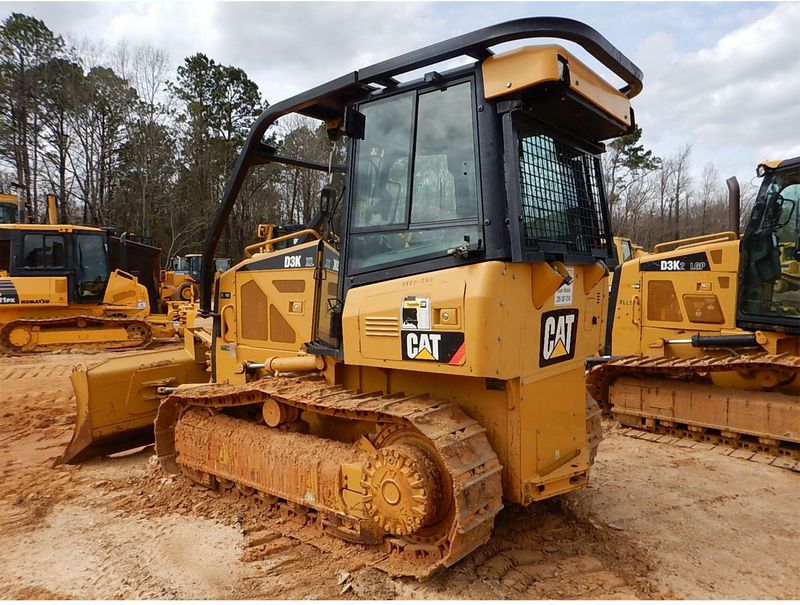

Caterpillar D3K XL
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 14 ft in (4266 mm) |
| Width Over Tracks | 6.23 ft in (1901 mm) |
| Height To Top Of Cab | 8.91 ft in (2716 mm) |
| Length Of Track On Ground | 6.92 ft in (2095 mm) |
| Ground Clearance | 1.08 ft in (332 mm) |
| Length W/O Blade | 10.74 ft in (3275 mm) |
Undercarriage
| Track Gauge | 4.91 ft in (1495 mm) |
| Standard Shoe Size | 16 in (406 mm) |
| Number Of Shoes Per Side | 41 |
| Ground Pressure | 6.5 psi (44.8 kPa) |
| Ground Contact Area | 2637 in2 (1.71 m2) |
| Number Of Track Rollers Per Side | 6 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | C4.4 ACERT |
| Gross Power | 81 hp (60.5 kw) |
| Net Power | 74 hp (55.2 kw) |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight | 17185 lb (7795 kg) |
| Fuel Capacity | 51.5 gal (195 L) |
| Cooling System Fluid Capacity | 6 gal (22.4 L) |
| Engine Oil Capacity | 3 gal (11 L) |
| Hydraulic Fluid Capacity | 15.7 gal (59.5 L) |
| Final Drives Fluid Capacity | 2.6 gal (10 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 120 amps |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 5.6 mph (9 km/h) |
| Max Speed - Reverse | 6.2 mph (10 km/h) |
Hydraulic System
| Relief Valve Pressure | 2988 psi (20600 kPa) |
| Pump Flow Capacity | 19.4 gal/min (73.5 L/min) |
Standard Blade
| Width | 8.7 ft in (2646 mm) |
| Height | 35.8 in (910 mm) |
| Capacity | 2 yd3 (1.6 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 22.5 in (573 mm) |
