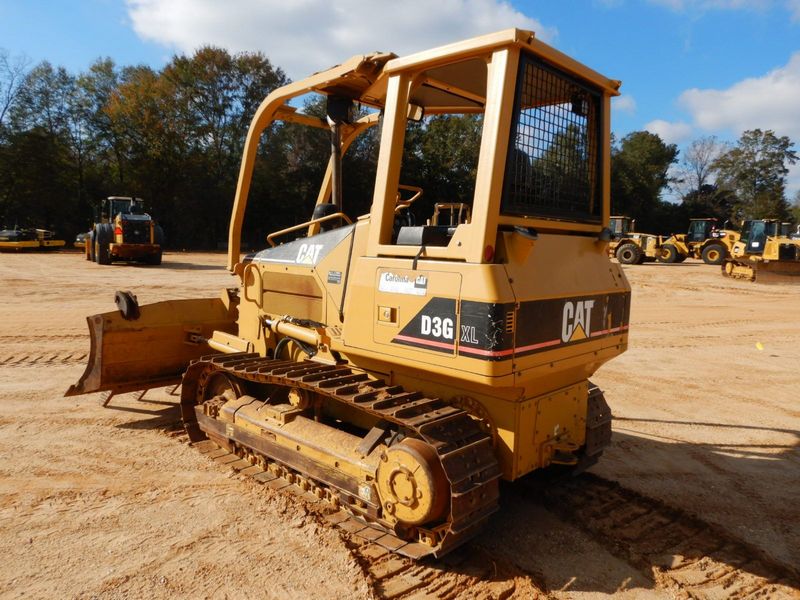

Caterpillar D3G XL
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 13.19 ft in (4020 mm) |
| Width Over Tracks | 6.08 ft in (1854 mm) |
| Height To Top Of Cab | 8.92 ft in (2718 mm) |
| Length Of Track On Ground | 6.75 ft in (2055 mm) |
| Ground Clearance | 1.22 ft in (374 mm) |
| Length W/O Blade | 10.18 ft in (3103 mm) |
Undercarriage
| Track Gauge | 4.76 ft in (1448 mm) |
| Standard Shoe Size | 16 in (406 mm) |
| Number Of Shoes Per Side | 39 |
| Ground Pressure | 6.27 psi (43.2 kPa) |
| Ground Contact Area | 2586 in2 (1.67 m2) |
| Number Of Track Rollers Per Side | 6 |
Engine
| Engine Make | 2236 |
| Engine Model | 3046T |
| Gross Power | 77 hp (57 kw) |
| Net Power | 70 hp (52 kw) |
| Displacement | 305 cu in (5 L) |
Operational
| Operating Weight | 16227 lb (7351 kg) |
| Fuel Capacity | 43.6 gal (165 L) |
| Cooling System Fluid Capacity | 5.5 gal (21 L) |
| Engine Oil Capacity | 3.4 gal (13 L) |
| Hydraulic Fluid Capacity | 12 gal (46.5 L) |
| Final Drives Fluid Capacity | 3.6 gal (13.8 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 120 amps |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 1 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 5.6 mph (9 km/h) |
| Max Speed - Reverse | 6 mph (9.6 km/h) |
Hydraulic System
| Relief Valve Pressure | 2900 psi (20000 kPa) |
| Pump Flow Capacity | 16.1 gal/min (61.1 L/min) |
Standard Blade
| Width | 8.1 ft in (2461 mm) |
| Height | 36.8 in (936 mm) |
| Capacity | 1.9 yd3 (1.5 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 21.8 in (554 mm) |
