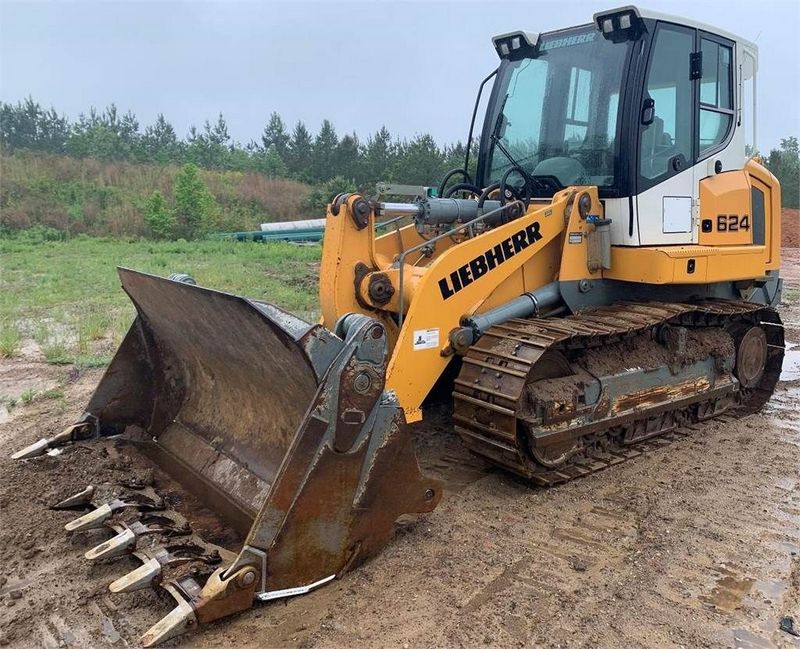

Liebherr LR624
Browse All Liebherr or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 20.8 ft in (6337 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Width To Outside Of Tracks | 7.38 ft in (2248 mm) |
| Height To Top Of Cab | 10.34 ft in (3150 mm) |
| Clearance At Full Height And Dump | 9.35 ft in (2849 mm) |
| Reach At Dump Height | 3.45 ft in (1051 mm) |
| Length To Front Of Track | 15.1 ft in (4600 mm) |
Undercarriage
| Track Gauge | 68.51 in (1740 mm) |
| Length Of Track On Ground | 8.15 ft in (2483 mm) |
| Number Of Shoes Per Side | 39 |
| Number Of Track Rollers Per Side | 6 |
| Ground Pressure | 9.53 psi (65.71 kPa) |
| Track Shoe Width | 20 in (508 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D934 S A6 |
| Net Power | 143 hp (106.7 kw) |
| Power Measured @ | 1800 rpm |
| Aspiration | Turbocharged w/ Aftercooler |
| Displacement | 391 cu in (6.5 L) |
Operational
| Operating Weight | 37275.8 lb (16908 kg) |
| Fuel Capacity | 64.2 gal (243 L) |
| Cooling System Fluid Capacity | 9.6 gal (36 L) |
| Engine Oil Capacity | 8 gal (30 L) |
| Final Drive Fluid Capacity - Each | 4 gal (15 L) |
| Hydraulic System Fluid Capacity | 20.7 gal (78 L) |
| Static Tipping Load | 26153.5 lb (11863 kg) |
| Bucket Capacity - Struck | 2.4 yd3 (1.8 m3) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Max Speed | 6.2 mph (10 km/h) |
Hydraulic
| Pump Flow Capacity | 42.8 gal/min (162 L/min) |
| Relief Valve Pressure | 3770 psi (25993.3 kPa) |
| Raise Time | 6.3 sec |
| Dump Time | 1.3 sec |
| Lower Time | 2.7 sec |
