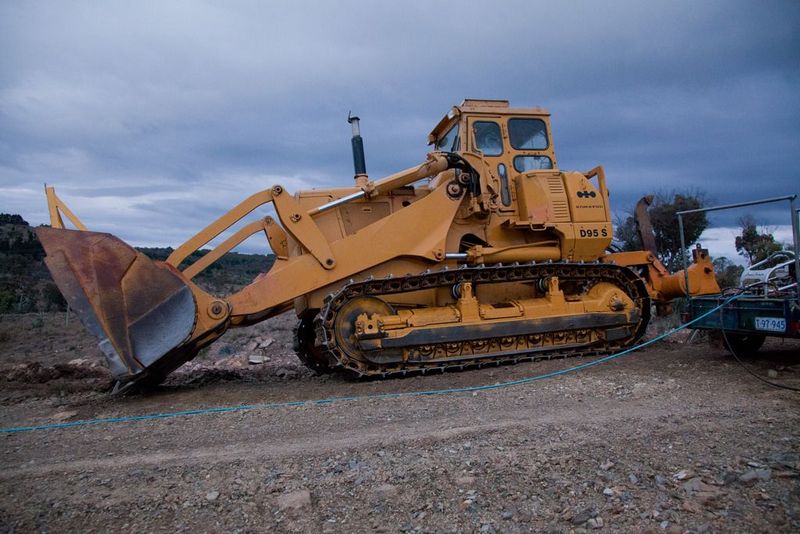

Komatsu D95S-1
Browse All Komatsu or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 20.25 ft in (6170 mm) |
| Width To Outside Of Tracks | 9.06 ft in (2760 mm) |
| Clearance At Full Height And Dump | 10.65 ft in (3245 mm) |
| Reach At Dump Height | 4.3 ft in (1310 mm) |
Undercarriage
| Track Gauge | 88.59 in (2250 mm) |
| Length Of Track On Ground | 10.01 ft in (3050 mm) |
| Number Of Track Rollers Per Side | 7 |
| Track Shoe Width | 20.08 in (510 mm) |
| Ground Pressure | 12.94 psi (89.22 kPa) |
Engine
| Engine Make | 2238 |
| Engine Model | S4D155-4 |
| Net Power | 240 hp (179 kw) |
| Displacement | 783 cu in (12.9 L) |
Operational
| Operating Weight | 62130 lb (28181.7 kg) |
| Fuel Capacity | 126.9 gal (480 L) |
| Cooling System Fluid Capacity | 25.7 gal (97 L) |
| Static Tipping Load | 44530 lb (20198.5 kg) |
| Breakout Force - Std Bucket | 47400 lb (210.9 kN) |
| Bucket Capacity - Heaped | 4.2 yd3 (3.2 m3) |
| Max Speed | 6.4 mph (10.2 km/h) |
Hydraulic
| Raise Time | 10.8 sec |
| Dump Time | 12 sec |
| Lower Time | 9.6 sec |
