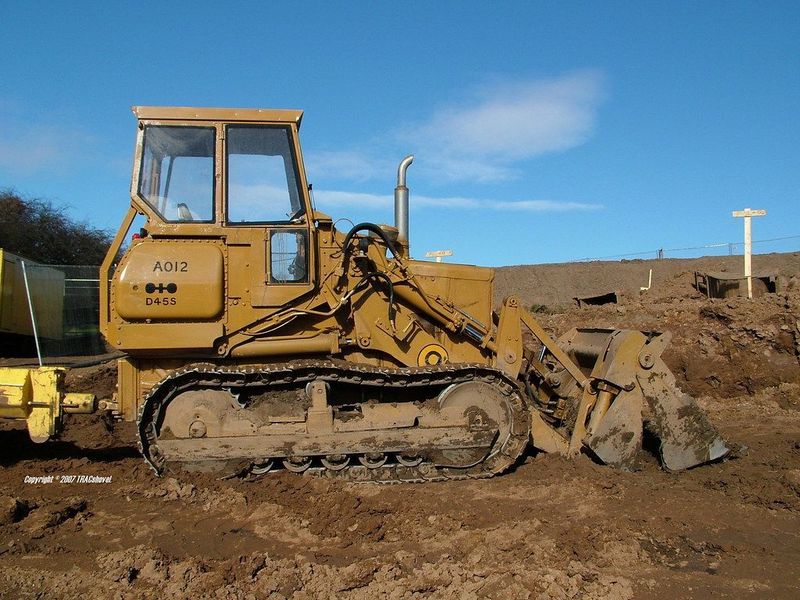

Komatsu D45S
Browse All Komatsu or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 16.11 ft in (4910 mm) |
| Width To Outside Of Tracks | 6.39 ft in (1945 mm) |
| Clearance At Full Height And Dump | 8.54 ft in (2600 mm) |
| Reach At Dump Height | 3.38 ft in (1030 mm) |
Undercarriage
| Track Gauge | 60.63 in (1540 mm) |
| Length Of Track On Ground | 6.76 ft in (2060 mm) |
| Number Of Track Rollers Per Side | 5 |
| Track Shoe Width | 15.75 in (400 mm) |
| Ground Pressure | 9.39 psi (64.75 kPa) |
Engine
| Engine Make | 2238 |
| Engine Model | S4D105 |
| Net Power | 90 hp (67.2 kw) |
| Displacement | 264 cu in (4.4 L) |
Operational
| Operating Weight | 24118.6 lb (10940 kg) |
| Fuel Capacity | 55.5 gal (210 L) |
| Cooling System Fluid Capacity | 11.4 gal (43 L) |
| Static Tipping Load | 15700 lb (7121.5 kg) |
| Breakout Force - Std Bucket | 13230 lb (58.9 kN) |
| Bucket Capacity - Heaped | 1.6 yd3 (1.2 m3) |
| Max Speed | 5.1 mph (8.2 km/h) |
