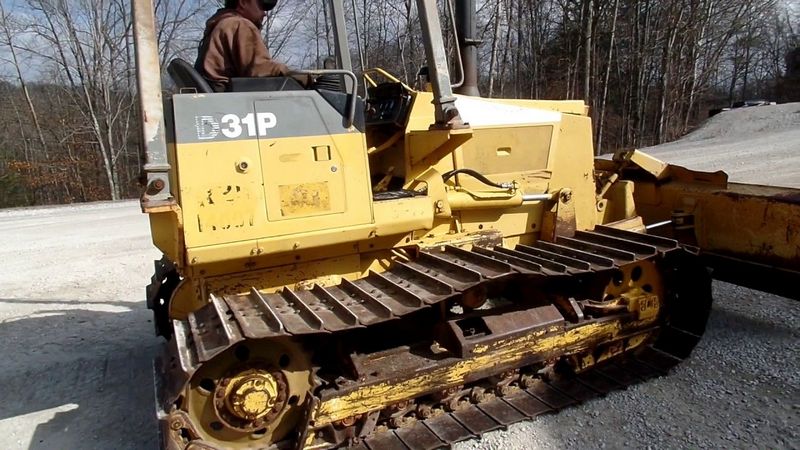

Komatsu D31PG-20A
Browse All Komatsu or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 12.9 ft in (3930 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Width To Outside Of Tracks | 7.39 ft in (2250 mm) |
| Height To Top Of Cab | 8.95 ft in (2725 mm) |
| Length To Front Of Track | 9.88 ft in (3010 mm) |
Undercarriage
| Track Gauge | 64.97 in (1650 mm) |
| Length Of Track On Ground | 7.17 ft in (2185 mm) |
| Number Of Track Rollers Per Side | 6 |
| Track Shoe Width | 23.63 in (600 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | 6D95L |
| Net Power | 71 hp (53 kw) |
| Power Measured @ | 2350 rpm |
| Displacement | 298.5 cu in (4.9 L) |
Operational
| Operating Weight | 15256 lb (6920 kg) |
