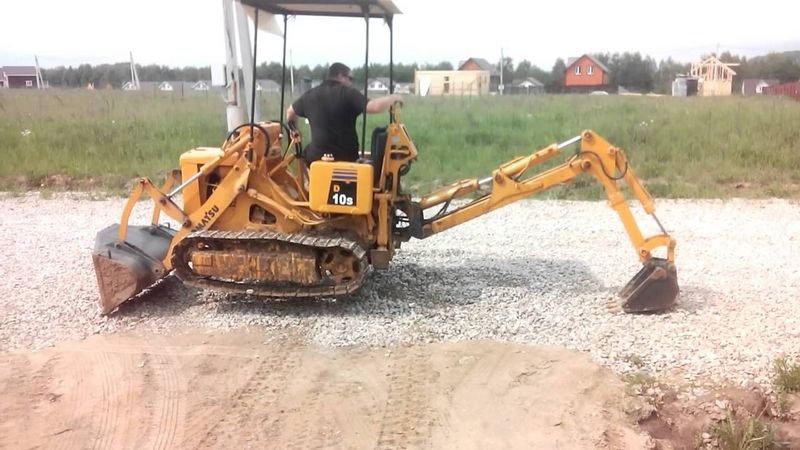

Komatsu D10S-1
Browse All Komatsu or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 8.4 ft in (2560 mm) |
| Width To Outside Of Tracks | 3.78 ft in (1150 mm) |
| Clearance At Full Height And Dump | 5.45 ft in (1660 mm) |
| Reach At Dump Height | 2.04 ft in (620 mm) |
Undercarriage
| Track Gauge | 36.42 in (925 mm) |
| Length Of Track On Ground | 3.84 ft in (1170 mm) |
| Number Of Track Rollers Per Side | 3 |
| Track Shoe Width | 8.86 in (225 mm) |
| Ground Pressure | 4.84 psi (33.38 kPa) |
Engine
| Engine Make | 2238 |
| Engine Model | 2D92 |
| Net Power | 20 hp (15 kw) |
| Displacement | 79.4 cu in (1.4 L) |
Operational
| Operating Weight | 3902.2 lb (1770 kg) |
| Fuel Capacity | 8 gal (30 L) |
| Cooling System Fluid Capacity | 2 gal (7.3 L) |
| Static Tipping Load | 3130 lb (1419.8 kg) |
| Breakout Force - Std Bucket | 4450 lb (19.8 kN) |
| Bucket Capacity - Heaped | 0.4 yd3 (0.3 m3) |
| Max Speed | 2.8 mph (4.5 km/h) |
