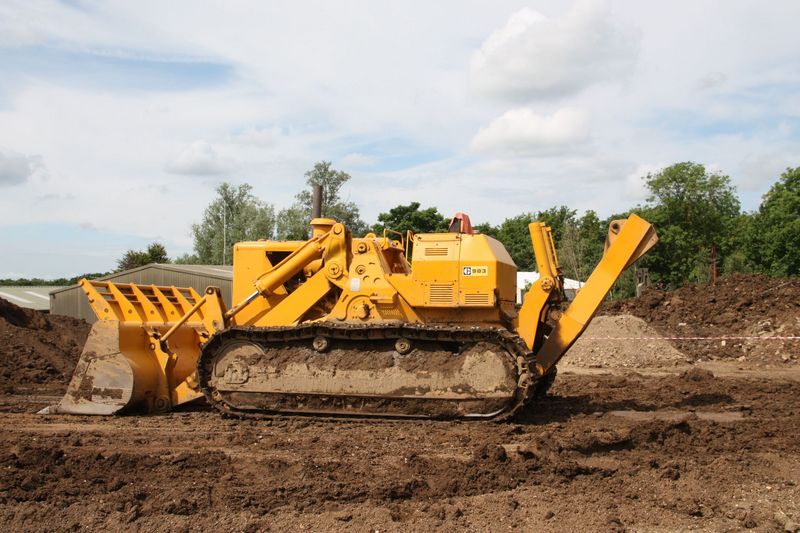

Caterpillar 983
Browse All Caterpillar or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 22.25 ft in (6780 mm) |
| Ground Clearance | 1.97 ft in (600 mm) |
| Width To Outside Of Tracks | 9.52 ft in (2900 mm) |
| Clearance At Full Height And Dump | 11.98 ft in (3650 mm) |
| Reach At Dump Height | 7.09 ft in (2160 mm) |
| Length To Front Of Track | 15.16 ft in (4620 mm) |
Undercarriage
| Track Gauge | 92.13 in (2340 mm) |
| Length Of Track On Ground | 11.09 ft in (3380 mm) |
| Number Of Shoes Per Side | 42 |
| Number Of Track Rollers Per Side | 7 |
| Track Shoe Width | 22.05 in (560 mm) |
| Ground Contact Area | 5843.52 in2 (3.77 m2) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | D343 |
| Net Power | 275 hp (205.1 kw) |
| Power Measured @ | 2060 rpm |
| Aspiration | turbocharged |
| Displacement | 891 cu in (14.6 L) |
Operational
| Operating Weight | 71650.3 lb (32500 kg) |
| Fuel Capacity | 134.8 gal (510 L) |
| Cooling System Fluid Capacity | 23 gal (87 L) |
| Engine Oil Capacity | 10.9 gal (41 L) |
| Final Drive Fluid Capacity - Each | 8.5 gal (32 L) |
| Hydraulic System Fluid Capacity | 38.1 gal (144 L) |
| Static Tipping Load | 48680 lb (22080.9 kg) |
| Breakout Force - Std Bucket | 43850 lb (195.1 kN) |
| Bucket Capacity - Struck | 3.8 yd3 (2.9 m3) |
| Bucket Capacity - Heaped | 4.9 yd3 (3.7 m3) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 19 amps |
| Max Speed | 7.4 mph (12 km/h) |
Hydraulic
| Pump Flow Capacity | 137.4 gal/min (520 L/min) |
| Relief Valve Pressure | 2150 psi (14823.8 kPa) |
| Raise Time | 7.7 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.2 sec |
