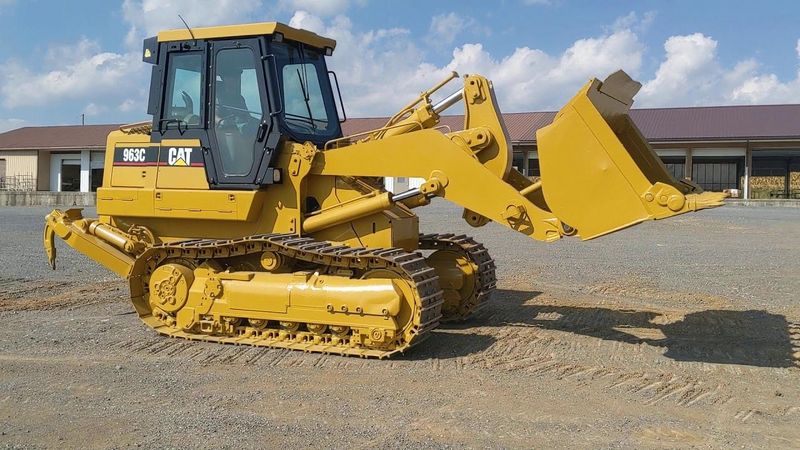

Caterpillar 963C
Browse All Caterpillar or Crawler Loader Models
Contents:
Dimensions
| Length With Bucket On Ground | 20.79 ft in (6336 mm) |
| Ground Clearance | 1.33 ft in (402.5 mm) |
| Width To Outside Of Tracks | 7.55 ft in (2300 mm) |
| Height To Top Of Cab | 11.15 ft in (3396 mm) |
| Clearance At Full Height And Dump | 10.32 ft in (3145 mm) |
| Reach At Dump Height | 3.78 ft in (1152 mm) |
| Length To Front Of Track | 15.15 ft in (4615 mm) |
Undercarriage
| Track Gauge | 72.84 in (1850 mm) |
| Length Of Track On Ground | 8.06 ft in (2454 mm) |
| Number Of Shoes Per Side | 37 |
| Ground Contact Area | 4185.01 in2 (2.7 m2) |
| Ground Pressure | 10.5 psi (72.4 kPa) |
| Number Of Track Rollers Per Side | 6 |
| Track Shoe Width | 21.66 in (550 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3126B ATAAC |
| Net Power | 158 hp (117.9 kw) |
| Power Measured @ | 2000 rpm |
| Aspiration | Turbocharged |
| Displacement | 439.4 cu in (7.2 L) |
Operational
| Operating Weight | 43186.4 lb (19589 kg) |
| Fuel Capacity | 83.3 gal (315 L) |
| Cooling System Fluid Capacity | 8.1 gal (30.5 L) |
| Engine Oil Capacity | 7.4 gal (28 L) |
| Final Drive Fluid Capacity - Each | 4 gal (15 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Static Tipping Load | 29903.6 lb (13564 kg) |
| Breakout Force - Std Bucket | 43133 lb (191.9 kN) |
| Bucket Capacity - Struck | 2.7 yd3 (2 m3) |
| Bucket Capacity - Heaped | 3.1 yd3 (2.3 m3) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
| Max Speed | 6.1 mph (9.7 km/h) |
Hydraulic
| Pump Type | VANE |
| Pump Flow Capacity | 56.8 gal/min (215 L/min) |
| Relief Valve Pressure | 3045 psi (20994.6 kPa) |
| Raise Time | 6.6 sec |
| Dump Time | 1.3 sec |
| Lower Time | 2.1 sec |
