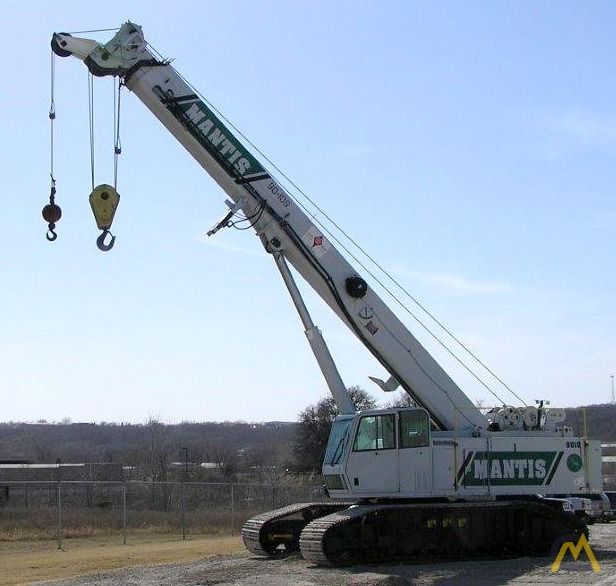

Tadano 9010
Browse All Tadano or Crawler Crane Models
Contents:
Engine
| Emissions Level | EPA Tier 3 |
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | QSB 6.7 |
| Gross Power | 260 hp (193.9 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 728 lb ft (987 Nm) |
| Torque Measured @ | 1500 rpm |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
Operational
| Operating Weight | 93894.9 lb (42590 kg) |
| Fuel Capacity | 99.9 gal (378 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 130 amps |
Transmission
| Max Travel Speed | 1.4 mph (2.1 km/h) |
| Min Travel Speed | 0.9 mph (1.3 km/h) |
Weights
| Counterweight | 15000.3 lb (6804 kg) |
Hydraulic
| Main Pump Flow Standard | 154.1 gal/min (583 L/min) |
| Maximum Operating Pressure | 4800 psi (33094.9 kPa) |
Boom
| Sections | 4 |
| Min Height @ Max Raise Angle | 34.2 ft in (10.4 m) |
| Max Height @ Max Raise Angle - No Jib | 105 ft in (32 m) |
| Max Elevating Angle | 78 degrees |
| Max Lift Capacity | 90000 lb (40823.3 kg) |
| Swing Speed | 2.2 rpm |
Dimensions
| Gradeability | 68 % |
| Transport Length | 43.7 ft in (13290 mm) |
| Transport Width | 12.1 ft in (3660 mm) |
| Operating Width | 18.4 ft in (5590 mm) |
| Transport Height | 10.1 ft in (3050 mm) |
