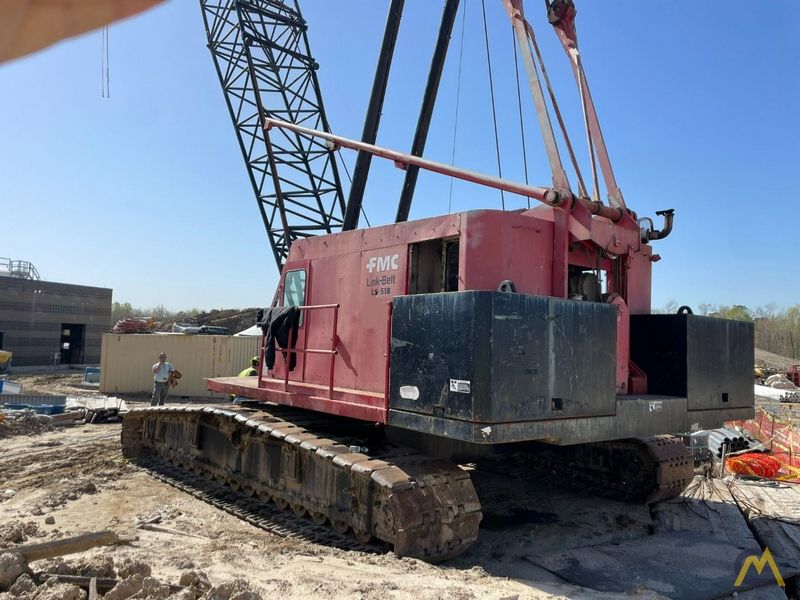

Link-Belt LS-518
Browse All Link-Belt or Crawler Crane Models
Contents:
Engine
| Number Of Cylinders | 8 |
| Engine Model | GM 8V-71N |
| Net Power | 245.5 hp (183 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 568 cu in (9.4 L) |
| Max Torque | 710 lb ft (962.7 Nm) |
| Torque Measured @ | 1200 rpm |
| Bore | 4.3 in (108 mm) |
| Stroke | 5 in (127 mm) |
Operational
| Fuel Capacity | 85.1 gal (322 L) |
| Operating Voltage | 24 V |
Transmission
| Max Speed | 1.1 mph (1.7 km/h) |
Undercarriage
| Number Of Shoes Per Side | 52 |
| Width Of Shoes | 44 in (1117.6 mm) |
| Number Of Track Rollers Per Side | 14 |
| Ground Pressure | 8.2 psi (56.6 kPa) |
Boom
| Min Height @ Max Raise Angle | 50 ft in (15.3 m) |
| Max Height @ Max Raise Angle - No Jib | 130 ft in (39.7 m) |
| Swing Speed | 3 rpm |
Dimensions
| Transport Width | 16.1 ft in (4880 mm) |
| Transport Height | 39.3 ft in (11960 mm) |
| Ground Clearance | 1.5 ft in (430 mm) |
