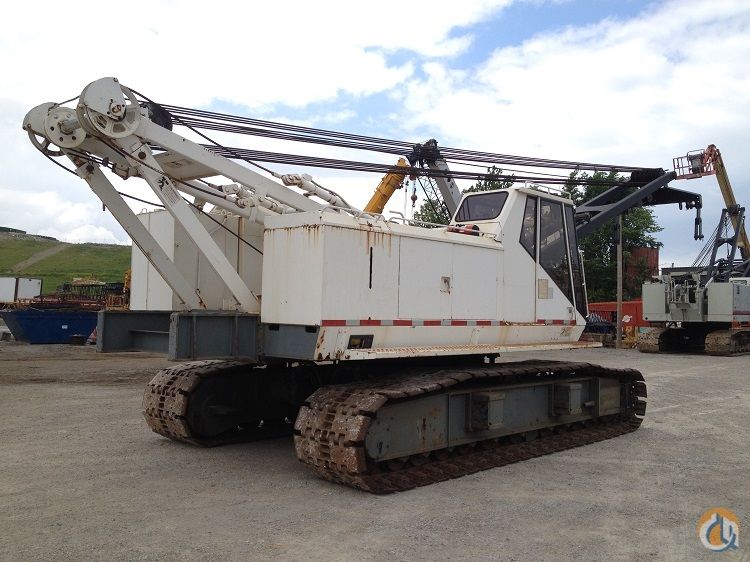

Link-Belt LS-208H
Browse All Link-Belt or Crawler Crane Models
Contents:
Engine
| Number Of Cylinders | 6 |
| Engine Make | Mitsubishi |
| Engine Model | 6D24-TEB |
| Net Power | 263 hp (196.2 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 729 cu in (12 L) |
| Max Torque | 746 lb ft (1011.5 Nm) |
| Torque Measured @ | 1400 rpm |
| Bore | 5.2 in (130 mm) |
| Stroke | 6 in (150 mm) |
Operational
| Fuel Capacity | 118.9 gal (450 L) |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
Transmission
| Max Speed | 1.1 mph (1.7 km/h) |
Undercarriage
| Number Of Shoes Per Side | 50 |
| Width Of Shoes | 35.9 in (910 mm) |
| Number Of Track Rollers Per Side | 10 |
| Ground Pressure | 8.4 psi (58 kPa) |
Boom
| Min Height @ Max Raise Angle | 40 ft in (12.2 m) |
| Max Height @ Max Raise Angle - No Jib | 150 ft in (45.8 m) |
| Swing Speed | 3 rpm |
Dimensions
| Gradeability | 30 % |
| Transport Width | 12 ft in (3630 mm) |
| Transport Height | 17.8 ft in (5410 mm) |
| Ground Clearance | 1.4 ft in (400 mm) |
| Tail Swing Radius | 13.5 ft in (4100 mm) |
