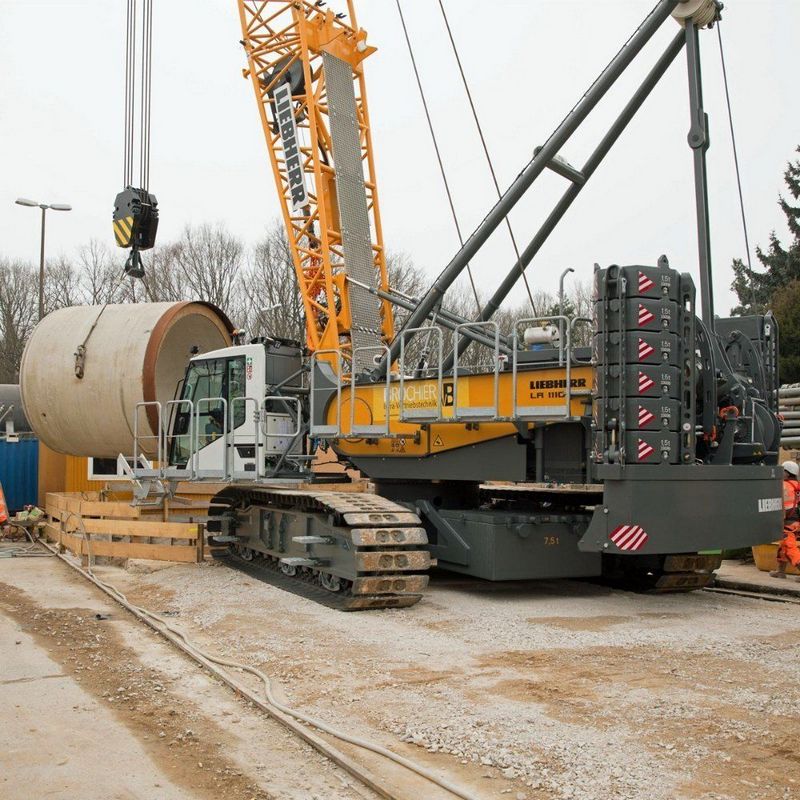

Liebherr LR1110
Browse All Liebherr or Crawler Crane Models
Contents:
Engine
| Emission Tier Level | Tier 4f |
| Engine Type | Liebherr D 944 A7 SCR |
| Gross Power | 308.5 hp (230 kw) |
| Power Measured @ | 1700 rpm |
Capacities
| Rope Capacity - Main Winches | 839.9 ft in (256 m) |
| Hydraulic Oil Tank | 181 gal (685 L) |
| Fuel Tank | 224.6 gal (850 L) |
Operational
| Luffing Jib | 46 sec from 15 degrees to 78 degrees |
| Luffing Rope Diameter | 0.8 in (20 mm) |
| Luffing Line Pull | 18434.4 lb (82 kN) |
| Rope Diameter- Main Winches | 1.1 in (26 mm) |
| Diameter - Main Winches | 22.9 in (580 mm) |
| Drive Speed - Crawlers | 1.8 mph (2.8 km/h) |
| Line Pull - Main Winches | 26977.1 lb (120 kN) |
| Track Pads - Crawlers | 35.5 in (900 mm) |
| Rope Speed - Main Wiches | 446.2 ft/min (136 m/min) |
Transmission
| Working Speed | 350 bar mph (350 bar km/h) |
Boom
| Rope Diameter- Boom Winch | 0.8 in (20 mm) |
| Line Pull -Boom Winch | 19333.6 lb (86 kN) |
| Boom Luffing - Boom Winch | 44 sec from 15 degrees to 86 degrees |
