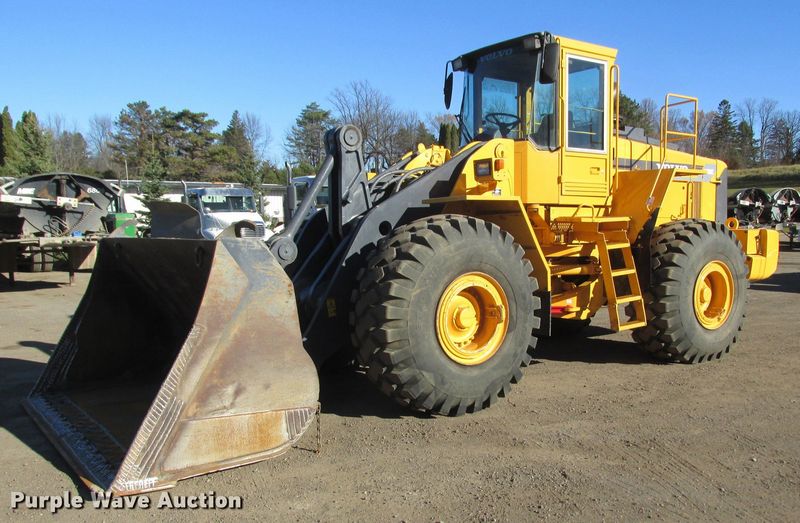

Volvo BM L180C
Contents:
Dimensions
| Length With Blade On Ground | 27.24 ft in (8300 mm) |
| Ground Clearance | 1.71 ft in (520 mm) |
| Width Over Wheels | 10.9 ft in (3320 mm) |
| Height To Top Of Cab | 11.82 ft in (3600 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 122 KHE |
| Net Power | 269 hp (200.6 kw) |
| Gross Power | 284 hp (211.8 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 732.3 cu in (12 L) |
| Max Torque | 1165.4 lb ft (1580 Nm) |
| Torque Measured @ | 900 rpm |
| Aspiration | turbo, intercooled |
Operational
| Operating Weight | 62831.8 lb (28500 kg) |
| Fuel Capacity | 89.6 gal (339 L) |
| Hydraulic System Fluid Capacity | 43.6 gal (165 L) |
| Engine Oil Capacity | 9 gal (34 L) |
| Cooling System Fluid Capacity | 21.2 gal (80 L) |
| Transmission Fluid Capacity | 9.3 gal (35 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Hydraulic System Relief Valve Pressure | 326.4 psi (2250 kPa) |
| Hydraulic Pump Type | vane pump |
| Axle Oscillation | 12 degrees |
| Hydraulic Pump Flow Capacity | 82.7 gal/min (313 L/min) |
Transmission
| Transmission Type | Volvo BM HT 220 |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed | 4.7 mph (7.5 km/h) |
Wheels
| Front Wheels Drum Width | 33.5 in (850 mm) |
| Front Wheels Drum Diameter | 55.2 in (1400 mm) |
Blade
| Width | 11.5 ft in (3500 mm) |
