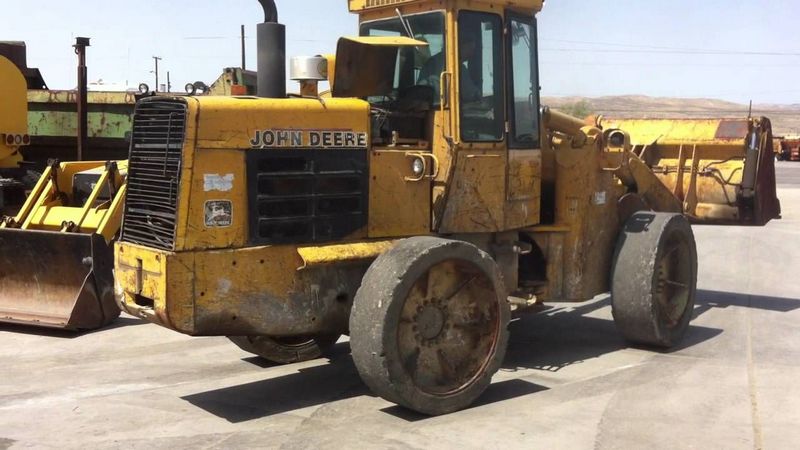

John Deere 646
Browse All John Deere or Compactor Models
Contents:
Dimensions
| Length With Blade On Ground | 20.67 ft in (6300 mm) |
| Width Over Wheels | 8.7 ft in (2650 mm) |
| Height To Top Of Cab | 10.27 ft in (3130 mm) |
| Wheelbase | 11.95 ft in (3640 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Net Power | 131 hp (97.7 kw) |
| Gross Power | 141.1 hp (105.2 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 404 cu in (6.7 L) |
| Max Torque | 348 lb ft (471.9 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 30012 lb (13613.3 kg) |
| Fuel Capacity | 50 gal (189.3 L) |
| Hydraulic System Fluid Capacity | 17.5 gal (66.3 L) |
| Engine Oil Capacity | 4.3 gal (16.1 L) |
| Cooling System Fluid Capacity | 9 gal (34.1 L) |
| Transmission Fluid Capacity | 9.8 gal (37 L) |
| Operating Voltage | 12 V |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
Wheels
| Front Wheels Drum Width | 23 in (584 mm) |
| Front Wheels Drum Diameter | 55 in (1397 mm) |
| Rear Wheels Drum Width | 23 in (584 mm) |
| Rear Wheels Drum Diameter | 55 in (1397 mm) |
Blade
| Blade Capacity | 4.5 yd3 (3.5 m3) |
| Width | 9.3 ft in (2810 mm) |
