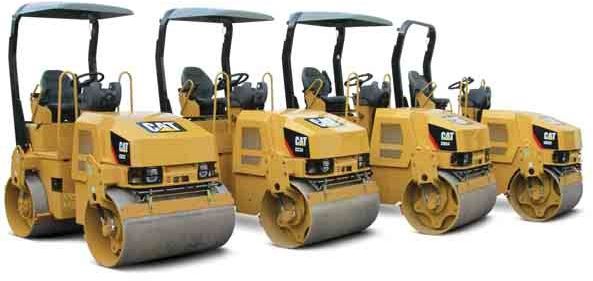

Caterpillar CC24B
Browse All Caterpillar or Compactor Models
Contents:
Dimensions
| Ground Clearance | 11 ft in (3352.8 mm) |
| Wheelbase | 71 ft in (21640.8 mm) |
| Maximum Machine Height | 106 in (2692.4 mm) |
| Overall Length | 8.42 ft in (2565.4 mm) |
| Overall Width | 4.34 ft in (1320.8 mm) |
| Drum Diameter | 28 in (711.2 mm) |
| Wheel Base | 5.92 ft in (0.16 m) |
Operating Specifications
| Ground Clearance | 0.92 ft in (0.03 m) |
| Standard Compaction Width | 47 in (1193.8 mm) |
| Static Linear Load | 57 lb (25.86 kg) |
| Travel Speed - Maximum | 6.5 mph (10.47 km/h) |
| Turning Radius - Inside Drum Edge | 96 in (2438.4 mm) |
| Curb Clearance | 20 in (508 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | C1.5 |
| Gross Power | 36.2 hp (27 kw) |
| Engine Model | C1.5 |
Operational
| Operating Weight | 5380 lb (2440.4 kg) |
| Fuel Capacity | 17 gal (64.4 L) |
Drum
| Drum Width | 47 in (1193.8 mm) |
Transmission
| Max Speed | 6.5 mph (10.5 km/h) |
Weights
| Operating Weight | 5380 lb (2440.4 kg) |
| Maximum Weight At Front Drum | 2857 lb (1296 kg) |
| Maximum Weight At Rear Drum | 2524 lb (1144.9 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 17 gal (64.4 L) |
| Water Spray Tank Capacity | 52 gal (196.9 L) |
Vibratory System
| Nominal Amplitude - High | 0.1 in (0.6 mm) |
| Centrifugal Force Per Drum - Maximum | 7378 lb (3346.7 kg) |
| Frequency | 63/55/42 Hz (3,780/3,300/2520 vpm) |
| Centrifugal Force Per Drum - Minimum | 3282 lb (1488.7 kg) |
