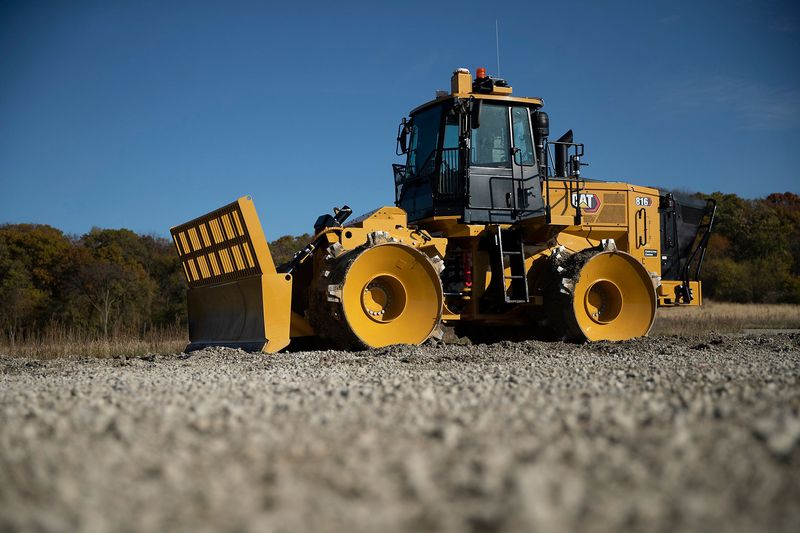

Caterpillar 816
Browse All Caterpillar or Compactor Models
Contents:
Dimensions
| Length With Blade On Ground | 23 ft in (7010 mm) |
| Width Over Wheels | 10.93 ft in (3330 mm) |
| Height To Top Of Cab | 11.16 ft in (3400 mm) |
| Wheelbase | 10.18 ft in (3100 mm) |
Engine
| Engine Model | 3306 |
| Gross Power | 170 hp (126.8 kw) |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Operating Weight | 41006 lb (18600 kg) |
| Fuel Capacity | 107 gal (405 L) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
Wheels
| Front Wheels Drum Width | 40.2 in (1020 mm) |
| Front Wheels Drum Diameter | 63 in (1600 mm) |
Blade
| Height | 77.2 in (1960 mm) |
| Width | 14.4 ft in (4370 mm) |
