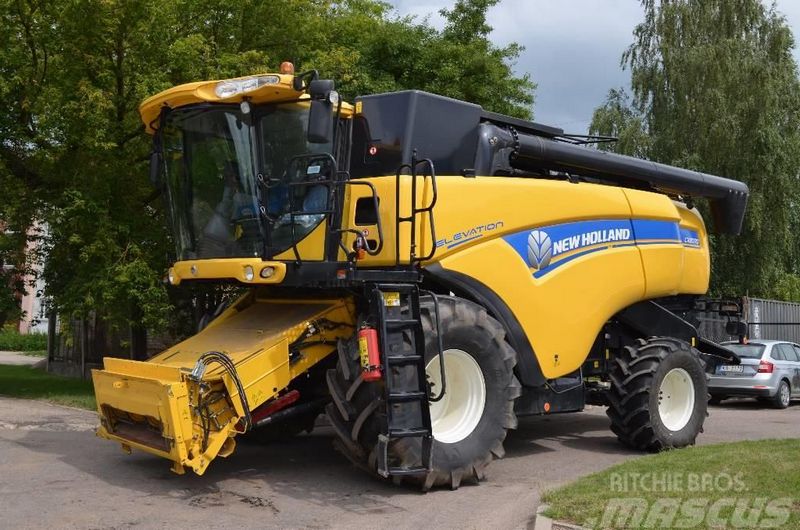

New Holland CX8070
Browse All New Holland or Combine Models
Contents:
Dimensions
| Overall Length | 29.7 ft in (9050 mm) |
| Width Over Tires | 14.42 ft in (4395 mm) |
| Height To Top Of Isomount Cab | 13 ft in (3960 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2249 |
| Power | 322 hp (240.2 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 549.3 cu in (9 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight W/O Attachment | 33950 lb (15399.5 kg) |
| Fuel Capacity | 200 gal (757.1 L) |
| Transmission Type | Hydrostatic drive |
| Number Of Gears | 4 |
Threshing
| Rotor Diameter | 29.6 in (750 mm) |
| Rotor Length | 62.3 in (1580 mm) |
| Rotor Speed - Low | 305 rpm |
| Rotor Speed - High | 905 rpm |
| Concave Area | 1829.1 in2 (1.2 m2) |
| Beater Grate Area | 449.6 in2 (0.3 m2) |
Separating
| Separator Length | 144.5 in (3670 mm) |
| Separating Area | 11082.6 in2 (7.2 m2) |
Cleaning System
| Total Cleaning Area | 10075.1 in2 (6.5 m2) |
| Cleaning Fan Speed - Low | 475 rpm |
| Cleaning Fan Speed - High | 900 rpm |
| Self Leveling? | yes |
Grain Handling
| Grain Tank Capacity | 290 bu (10219.4 L) |
| Unloading Auger Length | 21 ft in (6.4 m) |
| Unloading Speed | 3.2 bu/sec (112.8 L/sec) |
