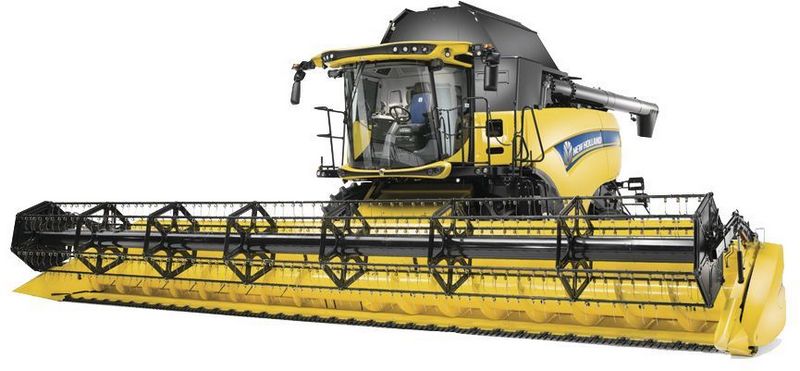

New Holland CX8.90
Browse All New Holland or Combine Models
Contents:
Dimensions
| Dimensions With Traction Wheels | 900/60R32 |
| Maximum Height - Transport | 12.9 ft in (3.94 m) |
| Maximum Width - Transport | 12.9 ft in (3.94 m) |
Harvest Suite
| Ultra Cab Glass Area | 68 ft2 (6.4 m2) |
| Optimum Cab Noise Level - Iso 5131 | 73 |
| Cab Category Level | 2 |
Straw Elevator
| Strawwalkers Number | 6 |
Graintank And Unloading
| Graintank Manual Folding Extensions, Standard/Optional | 10 bu (350 L) |
| Remote Folding Covers Capacity | 10.1 bu (355 L) |
| Unloading Speed | 3.5 bu/sec (123.4 L/sec) |
Fuel Tank
| Def Capacity | 32 gal (121.2 L) |
| Maximum Speed Standard | 19 |
| Maximum Speed Optional | 25 |
| Fuel Tank Capacity | 265 gal (1003.2 L) |
Corn Headers
| Rigid Corn Head | 6 - 12 |
| Folding Corn Head | 8 |
Engine
| Gross Engine Power @ 2100 Rpm | 602.2 hp (449 kw) |
| Maximum Engine Power @ 2000 Rpm | 657.2 hp (490 kw) |
| Engine Model | FPT Cursor 10 |
Threshing
| Width | 62 in (1574.8 mm) |
| Diameter | 29.5 in (749.3 mm) |
| Drum Concave Area | 1829 in (46456.6 mm) |
| Drum Concave Wrap Angle | 111 degrees |
| Beater Diameter | 18.8 in (476.3 mm) |
Weights
| Straw Chopper And Empty Fuel Tank | 35349 lb (16034.1 kg) |
