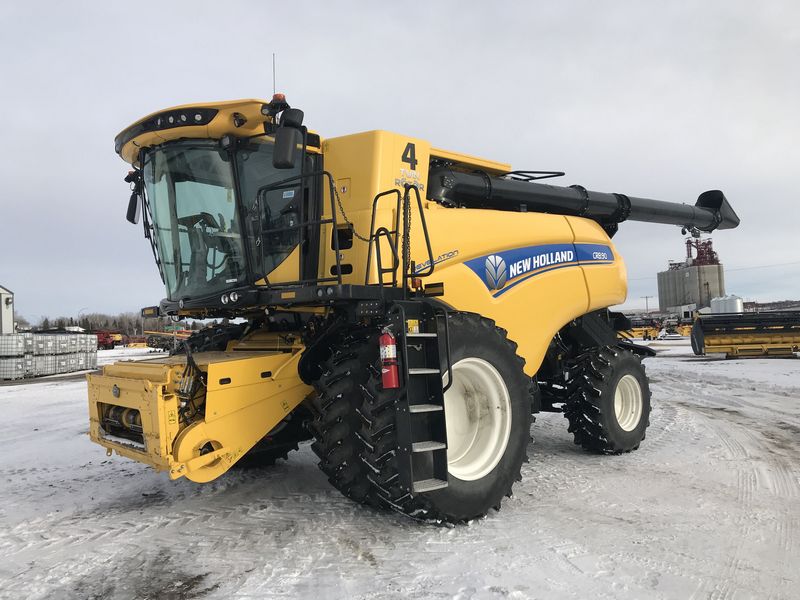

New Holland CR8.90
Browse All New Holland or Combine Models
Contents:
Dimensions
| Wheelbase | 12.34 ft in (3.76 mm) |
| Dimensions With Traction Wheels | 900 / 75 R32 |
| Maximum Height - Transport | 13 ft in (3.96 m) |
| Maximum Width | 13 ft in (3.96 m) |
| Maximum Width - Transport | 10.83 ft in (3.3 m) |
Combine Class
| Combine Class | 8 |
Harvest Suite
| Ultra Cab Glass Area | 68 ft2 (6.4 m2) |
| Optimum Cab Noise Level - Iso 5131 | 73 |
Straw Elevator
| Number Of Chains | 4 |
Twin Rotor® Technology
| Rotor Diameter | 22 in (558.8 mm) |
| Rotor Length | 104 in (2641.6 mm) |
Graintank And Unloading
| Graintank Manual Folding Extensions, Standard/Optional | 410 |
| Remote Folding Covers Capacity | 410 |
| Unloading Speed | 4 bu/sec (141 L/sec) |
Fuel Tank
| Diesel Capacity | 340 gal (1287.1 L) |
| Def Capacity | 42 gal (159 L) |
Engine
| Compliant With Tier 4 Emissions Regulations | FPT Cursor 11 |
| Gross Engine Power @ 2100 Rpm | 469 hp (349.8 kw) |
| Maximum Engine Power @ 2000 Rpm | 517 hp (385.6 kw) |
Weights
| Standard Version Less Header And Less Strawchopper | 42326 lb (19198.8 kg) |
Cleaning System
| Total Sieve Area Under Wind Control | 10075 in2 (6.5 m2) |
