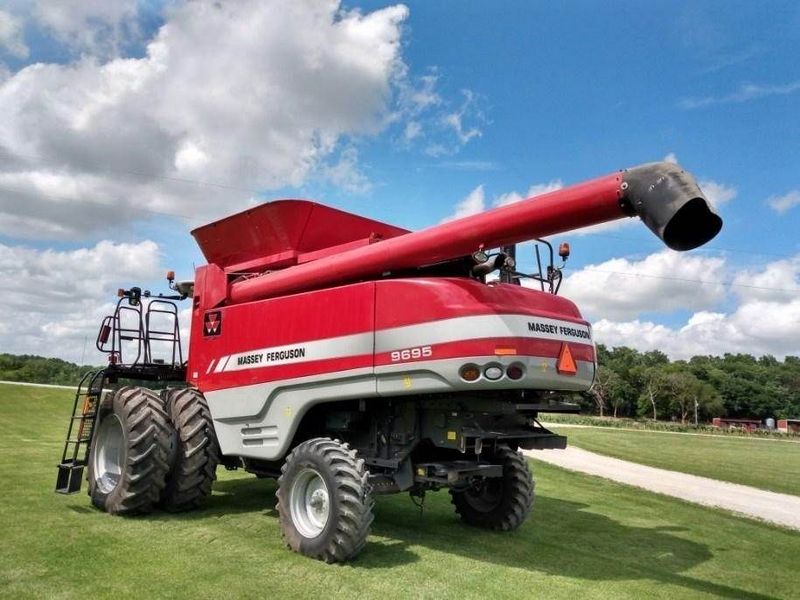

Massey Ferguson 9695
Browse All Massey Ferguson or Combine Models
Contents:
Dimensions
| Overall Length | 32.65 ft in (9950 mm) |
| Wheelbase | 12.18 ft in (3710 mm) |
| Ground Clearance | 1.58 ft in (480 mm) |
| Transport Height | 12.24 ft in (3730 mm) |
| Turning Radius | 21.1 ft in (6430 mm) |
| Unloader Clearance | 13.36 ft in (4.07 m) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | AGCO SISU POWER 84CTA |
| Power | 299.1 hp (223 kw) |
| Displacement | 512.6 cu in (8.4 L) |
Operational
| Operating Weight W/O Attachment | 28001 lb (12701 kg) |
| Hydraulic System Fluid Capacity | 9.7 gal (36.5 L) |
| Fuel Capacity | 229.9 gal (870 L) |
| Number Of Gears | 4 |
Feeding
| Feeder Reverser Control | Electro-hydraulic |
| Stone Or Rock Protection | Stone trap |
| Chain Size | 557 |
| Housing Width | 44.2 in (1121 mm) |
Threshing
| Rotor Diameter | 27.6 in (700 mm) |
| Rotor Length | 140 in (3556 mm) |
| Rotor Speed - Low | 175 rpm |
| Rotor Speed - High | 970 rpm |
| Concave Area | 2201.1 in2 (1.5 m2) |
Separating
| Separating Area | 2247.6 in2 (1.5 m2) |
Cleaning System
| Chaffer Area | 3627.1 in2 (2.4 m2) |
| Total Cleaning Area | 6758.1 in2 (4.4 m2) |
| Cleaning Fan Speed - Low | 590 rpm |
| Cleaning Fan Speed - High | 1350 rpm |
| Diameter | 11 in (0.3 m) |
Grain Handling
| Unloading Auger Diameter | 15 in (381 mm) |
| Grain Tank Capacity | 300 bu (10570 L) |
| Unloading Auger Length | 24.3 ft in (7.4 m) |
| Unloading Speed | 4.6 bu/sec (159 L/sec) |
| Unloading Discharge Height | 14.5 ft in (4.4 m) |
