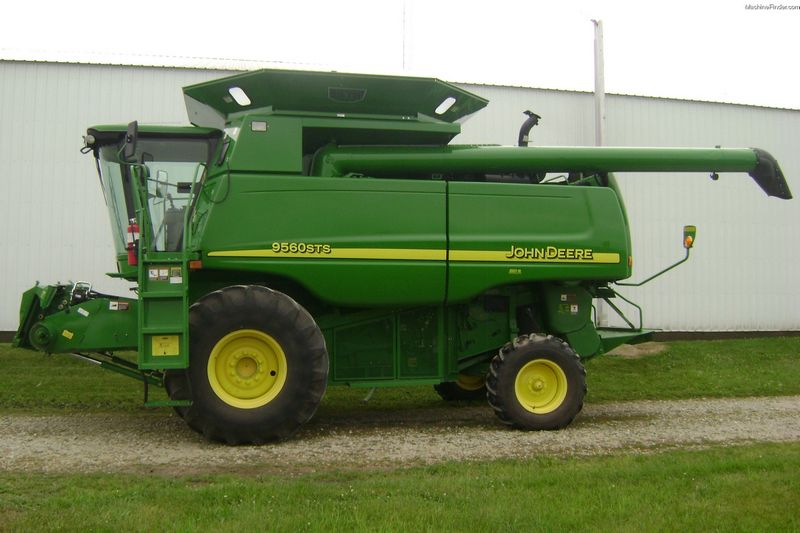

John Deere 9560 STS
Browse All John Deere or Combine Models
Contents:
Dimensions
| Turning Radius | 24.28 ft in (7400 mm) |
Electrical System
| Alternator | 95 Amp |
| Voltage | 12 V |
Engine
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | 6081HH |
| Power | 265.6 hp (198 kw) |
| Power Boost Power | 284.3 hp (212 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 494.3 cu in (8.1 L) |
Capacities
| Crankcase Oil Volume | 7.8 gal (29.5 L) |
| Final Drive | 2.2 gal (8 L) |
| Feeder House Reverser Gearcase | 0.7 gal (2.3 L) |
| Engine Gearcase | 5.7 gal (21.3 L) |
| Loading Auger Gearcase | 1.1 gal (3.8 L) |
Operational
| Fuel Capacity | 200 gal (757 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Hydraulic System Fluid Capacity | 9 gal (34 L) |
| Transmission Fluid Capacity | 2.6 gal (9.6 L) |
| Number Of Gears | 3 |
Feeding
| Number Of Wings | 10 |
Separating
| Tines | 18 |
| Number Of Grates | 3 |
Brakes
| Brakes Type | Hydraulic Shoe |
Grain Handling
| Grain Tank Capacity | 220 bu (7750 L) |
| Unloading Speed | 2.2 bu/sec (77.5 L/sec) |
