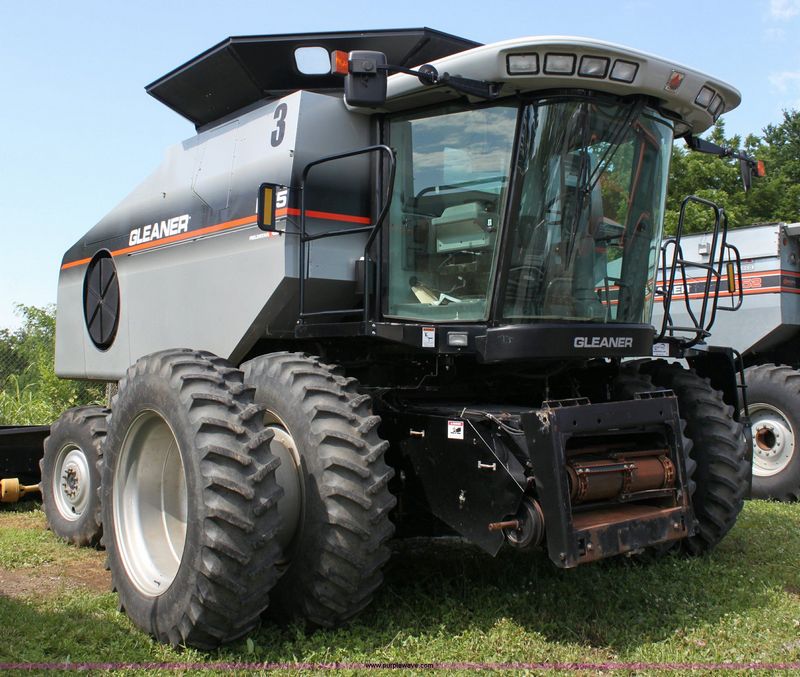

Gleaner R75
Contents:
Dimensions
| Overall Length | 25.23 ft in (7690 mm) |
| Wheelbase | 11.16 ft in (3400 mm) |
| Height To Top Of Isomount Cab | 11.75 ft in (3580 mm) |
Engine
| Engine Make | 2398 |
| Engine Model | 84 CTA |
| Power | 350 hp (261 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 512.6 cu in (8.4 L) |
Operational
| Operating Weight W/O Attachment | 28500 lb (12927.4 kg) |
| Fuel Capacity | 150.1 gal (568 L) |
| Transmission Type | 4 speed hydrostatic |
Feeding
| Conveyor Width | 36 in (914 mm) |
Threshing
| Rotor Diameter | 25 in (635 mm) |
| Rotor Length | 88 in (2235 mm) |
| Rotor Speed - Low | 200 rpm |
| Rotor Speed - High | 1096 rpm |
| Concave Area | 837.1 in2 (0.6 m2) |
Separating
| Separator Type | transverse |
| Separating Area | 4603.6 in2 (3 m2) |
Cleaning System
| Total Cleaning Area | 7734.6 in2 (5 m2) |
| Cleaning Fan Speed - High | 1150 rpm |
Grain Handling
| Grain Tank Capacity | 330.1 bu (11629 L) |
| Unloading Auger Length | 20.9 ft in (6.4 m) |
| Unloading Speed | 2.9 bu/sec (99 L/sec) |
| Unloading Discharge Height | 13.9 ft in (4.3 m) |
