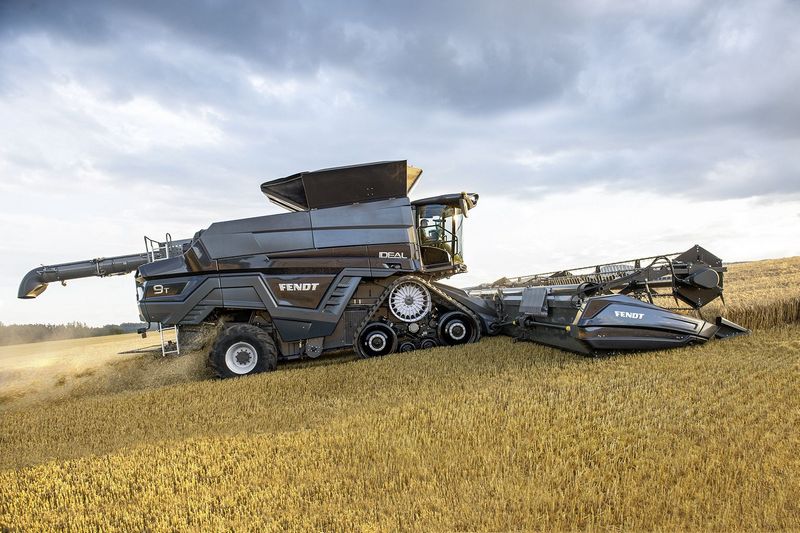

Fendt IDEAL 7
Contents:
Residue Management
| Basecut Configuration - Knives | 56 |
| Basecut Configuration - Rows | 4 |
| Shortcut Configuration - Rows | 8 |
| Shortcut Configuration - Knives | 112 |
| Straw Chopper Speed - Low | 850 rpm |
| Straw Chopper Speed - High | 3600 rpm |
Engine
| Emission Tier Level | Tier 4F |
| Engine Model | AGCO Power |
| Power | 451 hp (336.4 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 598.1 cu in (9.8 L) |
Operational
| Max Speed | 25 mph (40.3 km/h) |
| Transmission Type | 2 Speed Motion Shift |
Feeding
| Feederhouse Lifting Capacity | 10000 lb (4536 kg) |
| Feeder Description | 3 Strand |
Threshing
| Rotor Feeder Length | 24 in (609.6 mm) |
| Rotor Width | 190.5 in (4838.7 mm) |
| Rotor Feeder Width | 55 in (1397 mm) |
| Rotor Type | Single |
| Threshing Area | 1287 in2 (830321 mm2) |
| Rotor Length | 24 in (609.6 mm) |
| Rotor Speed - Low | 285 rpm |
| Rotor Speed - High | 656 rpm |
Separating
| Separating Area | 2232 in2 (1.5 m2) |
| Discharge Grate Area | 3519 in2 (2.3 m2) |
Cleaning System
| Total Sieve Area-Fixed | 7595 in2 (4.9 m2) |
| Total Cleaning Area | 11548 in2 (7.5 m2) |
| Cleaning Fan Speed - Low | 250 rpm |
| Cleaning Fan Speed - High | 1400 rpm |
| Cleaning Fan Description | 3 x Impeller Fan |
Grain Handling
| Grain Tank Capacity | 350 bu (12333.7 L) |
| Unloading Speed | 4 bu/sec (141 L/sec) |
