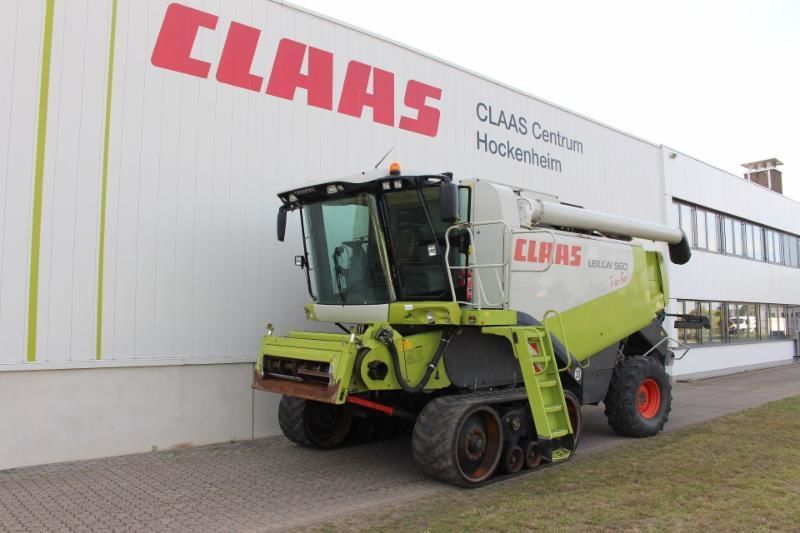

Claas 560 TERRA TRAC
Contents:
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | C 13 |
| Power | 379.6 hp (283 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 762.8 cu in (12.5 L) |
Operational
| Fuel Capacity | 211.4 gal (800 L) |
Threshing
| Rotor Diameter | 23.7 in (600 mm) |
| Rotor Length | 67 in (1700 mm) |
| Rotor Speed - Low | 395 rpm |
| Rotor Speed - High | 1150 rpm |
| Concave Area | 1953.1 in2 (1.3 m2) |
Grain Handling
| Grain Tank Capacity | 298 bu (10500 L) |
| Unloading Speed | 2.9 bu/sec (100 L/sec) |
