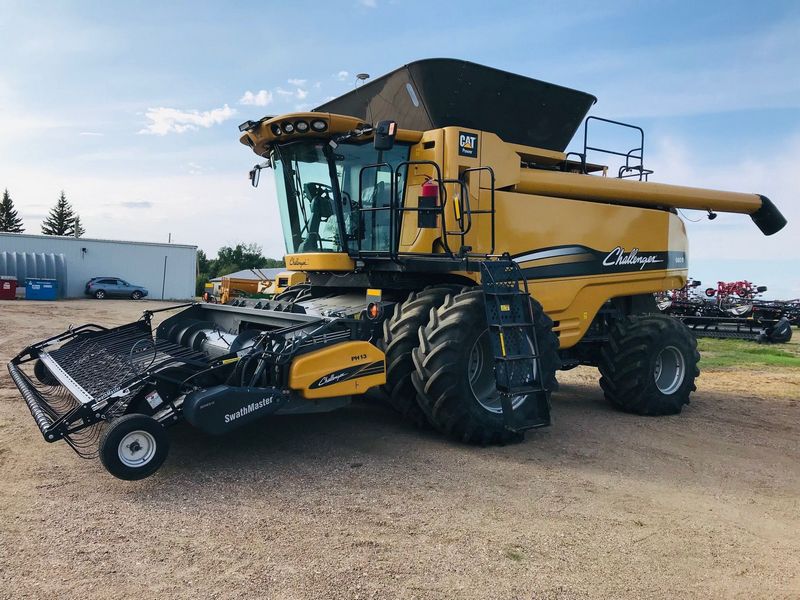

Challenger 680B
Browse All Challenger or Combine Models
Contents:
Dimensions
| Transport Height | 12.24 ft in (3730 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | C13 12.5L |
| Power | 425 hp (317 kw) |
| Power Measured @ | 2100 rpm |
Operational
| Operating Weight W/O Attachment | 39551 lb (17940.1 kg) |
| Fuel Capacity | 230 gal (870.7 L) |
| Transmission Type | 4-Speed Hydrostatic |
Feeding
| Conveyor Width | 55.5 in (1408 mm) |
Threshing
| Rotor Diameter | 31.6 in (801 mm) |
| Rotor Length | 140 in (3556 mm) |
| Concave Area | 2721 in2 (1.8 m2) |
Cleaning System
| Total Cleaning Area | 8296 in2 (5.4 m2) |
Grain Handling
| Grain Tank Capacity | 350 bu (12333.7 L) |
| Unloading Speed | 4.5 bu/sec (158.6 L/sec) |
