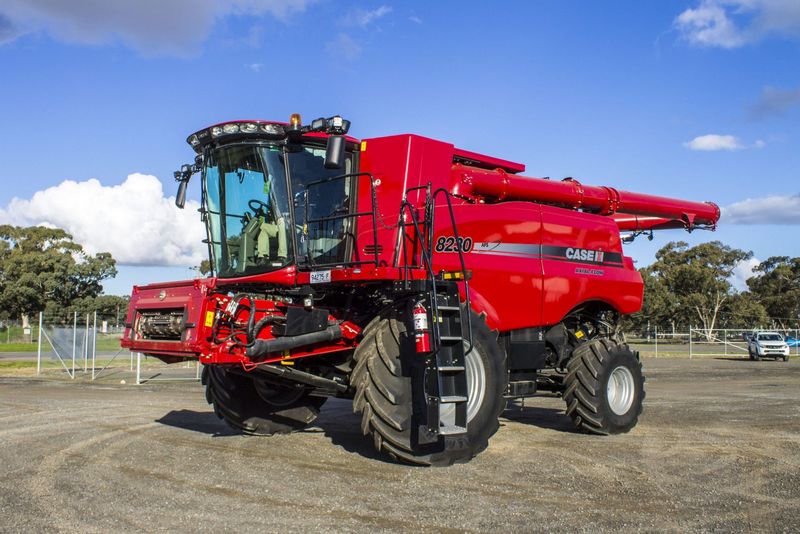

Case IH 8230
Contents:
Dimensions
| Overall Length | 23 ft in (7010.4 mm) |
| Width Over Tires | 30 ft in (9144 mm) |
| Wheelbase | 147.9 ft in (45079.92 mm) |
| Height To Top Of Isomount Cab | 28.8 ft in (8778.24 mm) |
Engine
| Engine Make | 2408 |
| Engine Model | FPT |
| Power | 450 hp (335.6 kw) |
| Power Boost Power | 510 hp (380.4 kw) |
| Power Measured @ | 60 rpm |
| Displacement | 12.9 cu in (0.3 L) |
Operational
| Operating Weight W/O Attachment | 37500 lb (17009.8 kg) |
| Fuel Capacity | 264 gal (999.4 L) |
| Transmission Type | 4-SPEED HYDROSTATIC DRIVE |
| Number Of Gears | 4 |
Feeding
| Conveyor Width | 10.4 in (264 mm) |
| Conveyor Length | 11.9 in (302 mm) |
| Conveyor Speed | 2 rpm |
Threshing
| Rotor Diameter | 30 in (762 mm) |
| Rotor Speed - Low | 220 rpm |
| Rotor Speed - High | 730 rpm |
| Concave Area | 2 in2 (0.1 m2) |
| Beater Grate Area | 2 in2 (0.1 m2) |
Separating
| Separator Type | LONGITUDINALLY MOUNTED ROTOR |
| Separator Length | 2 in (50.8 mm) |
| Separating Area | 2 in2 (0.1 m2) |
| Discharge Grate Area | 2 in2 (0.1 m2) |
Cleaning System
| Total Cleaning Area | 10075 in2 (6.5 m2) |
| Cleaning Fan Speed - Low | 300 rpm |
| Cleaning Fan Speed - High | 1150 rpm |
| Self Leveling? | Standard |
Grain Handling
| Grain Tank Capacity | 350 bu (12333.7 L) |
| Unloading Auger Length | 28 ft in (8.6 m) |
