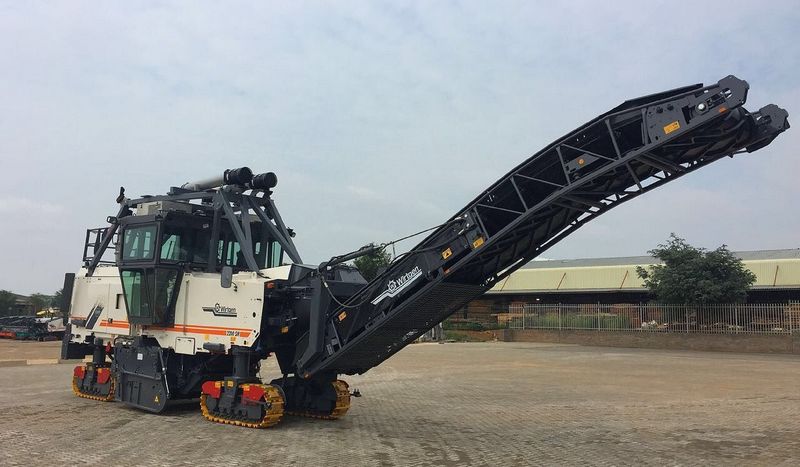

Wirtgen W2200
Browse All Wirtgen or Cold Planer Models
Contents:
Conveyor System
| Discharge Conveyor Width | 43.31 in (1100 mm) |
| Collecting Conveyor Width | 43.31 in (1100 mm) |
Dimensions
| Operating Length | 53.81 ft in (16400 mm) |
| Shipping Width | 9.19 ft in (2800 mm) |
| Shipping Height | 9.93 ft in (3025 mm) |
| Shipping Length | 31.83 ft in (9700 mm) |
| Max Operating Height | 15.75 ft in (4800 mm) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2236 |
| Engine Model | C27 ATAAC |
| Gross Power | 950 hp (708.5 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 1647.7 cu in (27 L) |
Operational
| Operating Weight - Full Load | 105314.9 lb (47770 kg) |
| Shipping Weight - Empty | 91491.9 lb (41500 kg) |
| Fuel Capacity | 369.9 gal (1400 L) |
| Hydraulic System Fluid Capacity | 132.1 gal (500 L) |
| Water Spray System Fluid Capacity | 1320.9 gal (5000 L) |
| Operational Voltage | 24 V |
| Travel Speed | 3.2 mph (5 km/h) |
Rotary Cutter
| Cutting Width | 7.3 ft in (2200 mm) |
| Cutting Depth | 13.8 in (350 mm) |
| Cutter Diameter | 44.9 in (1140 mm) |
| Number Of Tools | 188 |
| Tool Spacing | 0.6 in (15 mm) |
Tracks
| Number Of Track Units | 4 |
| Front Track Length | 7.3 ft in (2200 mm) |
| Front Track Width | 14.6 in (370 mm) |
| Rear Track Length | 7.3 ft in (2200 mm) |
| Rear Track Width | 14.6 in (370 mm) |
