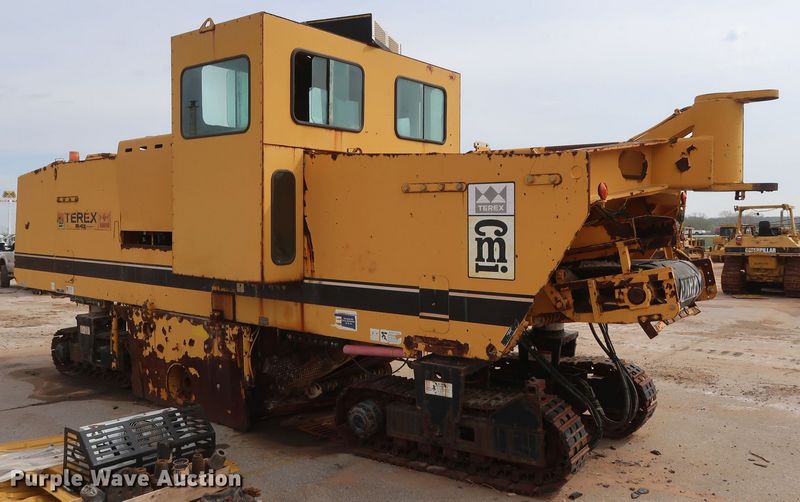

Terex PR600
Browse All Terex or Cold Planer Models
Contents:
Conveyor System
| Discharge Conveyor Width | 42.01 in (1067 mm) |
| Discharge Conveyor Swing (R/L) | 55 degrees |
| Collecting Conveyor Width | 42.01 in (1067 mm) |
Dimensions
| Operating Length | 51.57 ft in (15718 mm) |
| Shipping Width | 8.5 ft in (2590 mm) |
| Shipping Height | 10.69 ft in (3256 mm) |
| Max Truck Clearance | 15.96 ft in (4862 mm) |
Engine
| Number Of Cylinders | 6 |
| Gross Power | 600 hp (447.5 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 915 cu in (15 L) |
Operational
| Operating Weight - Full Load | 90600 lb (41095.5 kg) |
| Shipping Weight - Empty | 81300 lb (36877.1 kg) |
| Fuel Capacity | 350.1 gal (1325 L) |
| Hydraulic System Fluid Capacity | 90.1 gal (341 L) |
| Water Spray System Fluid Capacity | 900.9 gal (3410 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Operating Speed | 157.5 ft/min (48 m/min) |
| Travel Speed | 3.2 mph (5 km/h) |
Rotary Cutter
| Cutting Width | 7.2 ft in (2185 mm) |
| Cutting Depth | 14.1 in (356 mm) |
| Cutter Diameter | 48.1 in (1220 mm) |
| Number Of Tools | 185 |
| Tool Spacing | 0.8 in (19 mm) |
Tracks
| Number Of Track Units | 4 |
| Front Track Length | 6.9 ft in (2074 mm) |
| Front Track Width | 13.8 in (350 mm) |
| Rear Track Length | 6.9 ft in (2074 mm) |
| Rear Track Width | 13.8 in (350 mm) |
