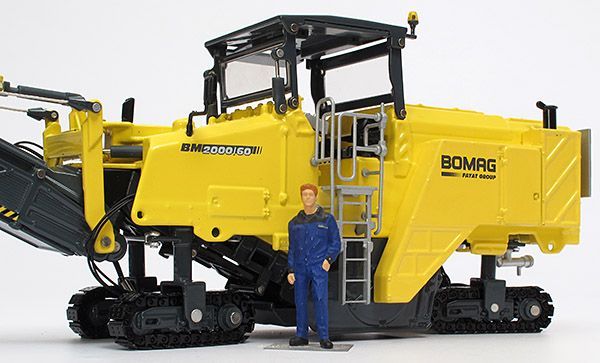

Bomag BM2000/60
Browse All Bomag or Cold Planer Models
Contents:
Conveyor System
| Discharge Conveyor Width | 31.5 in (800 mm) |
| Collecting Conveyor Width | 31.5 in (800 mm) |
Dimensions
| Operating Length | 48.89 ft in (14900 mm) |
| Shipping Width | 8.21 ft in (2500 mm) |
| Shipping Height | 9.72 ft in (2960 mm) |
| Shipping Length | 39.38 ft in (12000 mm) |
| Max Operating Height | 14.72 ft in (4485 mm) |
Engine
| Number Of Cylinders | 8 |
| Engine Make | 2349 |
| Engine Model | TCD2015 |
| Gross Power | 590 hp (440 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 976 cu in (16 L) |
Operational
| Operating Weight - Full Load | 71650 lb (32499.9 kg) |
| Shipping Weight - Empty | 61950 lb (28100.1 kg) |
| Fuel Capacity | 317.1 gal (1200 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Water Spray System Fluid Capacity | 871.8 gal (3300 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Operating Speed | 98.5 ft/min (30 m/min) |
| Travel Speed | 3.2 mph (5 km/h) |
Rotary Cutter
| Cutting Width | 6.6 ft in (2000 mm) |
| Cutting Depth | 12.6 in (320 mm) |
| Cutter Diameter | 42.2 in (1070 mm) |
| Number Of Tools | 168 |
| Tool Spacing | 0.6 in (15 mm) |
Tracks
| Number Of Track Units | 4 |
| Front Track Length | 5.6 ft in (1700 mm) |
| Front Track Width | 11.9 in (300 mm) |
| Rear Track Length | 5.6 ft in (1700 mm) |
| Rear Track Width | 11.9 in (300 mm) |
