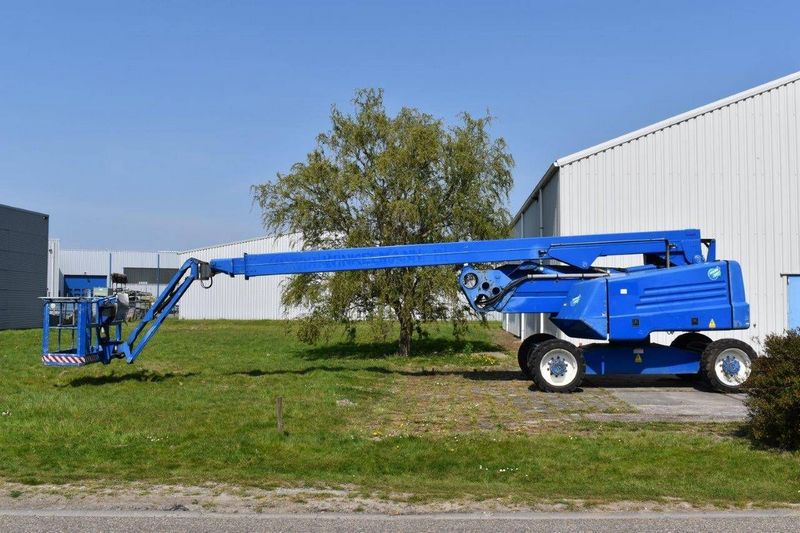

UpRight AB85RJ
Contents:
Dimensions
| Overall Length | 42.66 in (13000 mm) |
| Overall Width | 8.54 ft in (2600 mm) |
| Overall Height - Mast Lowered | 9.85 ft in (3000 mm) |
| Ground Clearance | 13 in (330 mm) |
Platform
| Max Platform Height | 85.31 ft in (26000 mm) |
| Max Horizontal Reach | 62.01 ft in (18900 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Max Working Height | 91.87 ft in (28000 mm) |
| Platform Inner Length | 96.07 in (2440 mm) |
| Platform Inner Width | 35.83 in (910 mm) |
| Platform Rotation | 150 degrees |
Engine
| Engine Make | 2349 |
| Engine Model | F4L-2011 |
| Gross Power | 64 hp (47.8 kw) |
Operational
| Operating Weight | 39099 lb (17735 kg) |
| Max Speed | 3 mph (4.8 km/h) |
| Tire Size | 15 x 625 |
| Tire Fill/Type | poly filled/lug |
