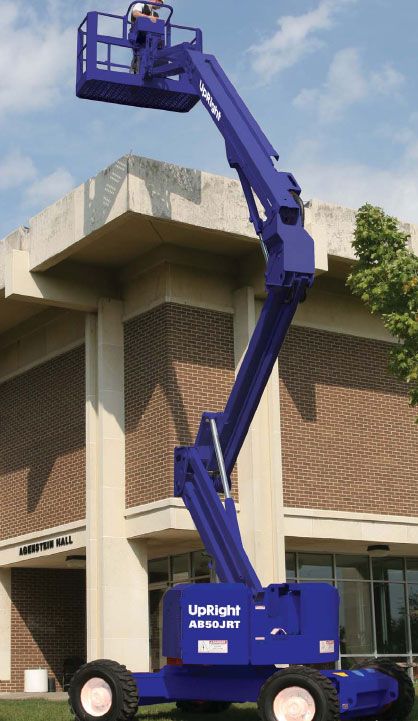

UpRight AB50JRT
Contents:
Dimensions
| Overall Length | 21 in (6400 mm) |
| Overall Width | 7.55 ft in (2300 mm) |
| Overall Height - Mast Lowered | 6.89 ft in (2100 mm) |
| Ground Clearance | 9.85 in (250 mm) |
Platform
| Max Platform Height | 49.87 ft in (15200 mm) |
| Max Horizontal Reach | 27.89 ft in (8500 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Max Working Height | 56.44 ft in (17200 mm) |
| Platform Inner Length | 72.05 in (1830 mm) |
| Platform Inner Width | 29.93 in (760 mm) |
| Platform Rotation | 180 degrees |
Engine
| Engine Make | 2334 |
| Engine Model | V-1505 |
| Gross Power | 29.5 hp (22 kw) |
| Fuel Type | diesel |
Operational
| Operating Weight | 15635.2 lb (7092 kg) |
| Max Speed | 3.5 mph (5.6 km/h) |
| Tire Size | 12 x 16.5 |
| Tire Fill/Type | poly filled/lug |
