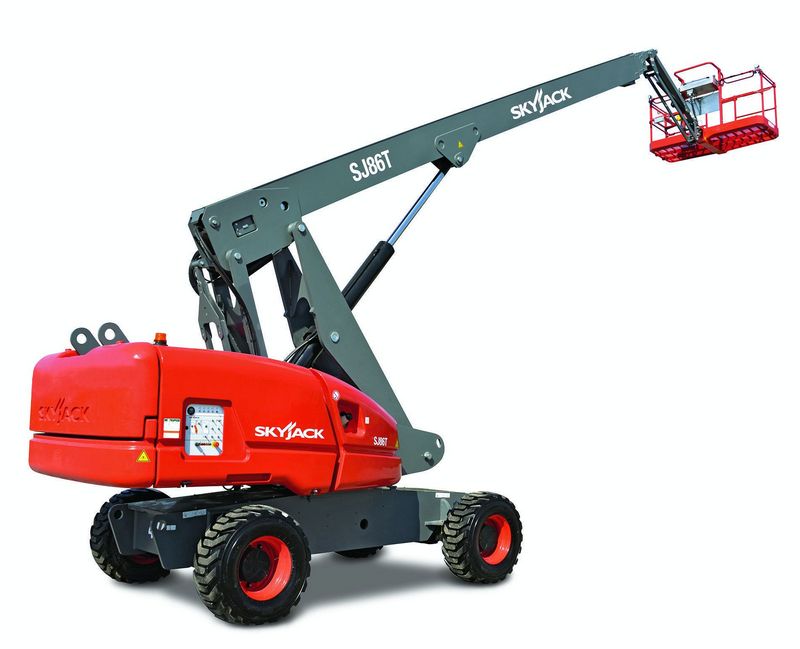

Skyjack SJ86 T
Contents:
Dimensions
| Wheelbase | 11 ft in (3350 mm) |
| Ground Clearance | 16.15 in (410 mm) |
| Horizontal Reach | 76.84 ft in (23.42 m) |
| Axle Oscillation | 33.34 ft in (10.16 m) |
| Gradeability | 45 % |
| Stowed Height | 9.85 ft in (3 m) |
| Tailswing Radius | 4.66 ft in (1420 mm) |
| Turning Radius - Inside | 11.52 ft in (3510 mm) |
| Turning Radius – Outside Minimum | 23.33 ft in (7110 mm) |
Platform
| Max Platform Height | 86 ft in (26210 mm) |
| Overall Width (Stowed) | 8.17 ft in (2.5 m) |
| Platform Rotation | 170 degrees |
| Local Floor Load-With Rated Load | 145 psi (999.74 kPa) |
| Max Platform Weight Capacity | 751.78 lb (341 kg) |
| Max Working Height | 92 ft in (28040 mm) |
| Overall Length (Stowed , Guardrail Folded) | 41.31 ft in (12.59 m) |
| Maximum No Of Persons | 2/3 |
Engine
| Diesel Engine Power | 74 hp (55.2 kw) |
Operational
| Operating Weight | 37150.1 lb (16851 kg) |
| Fuel Capacity | 45 gal (170 L) |
| Hydraulic System Fluid Capacity | 60 gal (227 L) |
| Max Speed | 3.5 mph (5.7 km/h) |
| Tire Size | 18-625 |
| Tire Fill/Type | Foam Filled |
