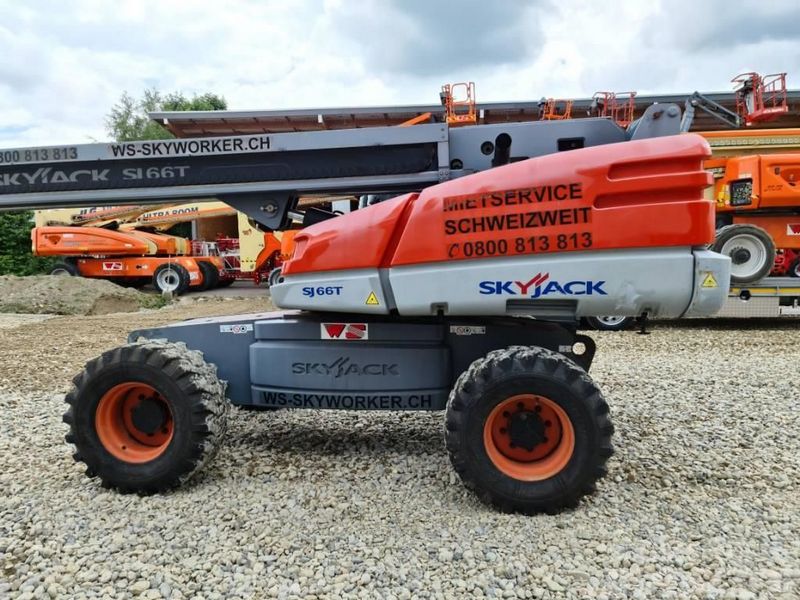

Skyjack SJ66 T
Contents:
Dimensions
| Wheelbase | 8.01 ft in (2440 mm) |
| Ground Clearance | 16.15 in (410 mm) |
| Horizontal Reach | 56.99 ft in (17.37 m) |
| Axle Oscillation | 25 ft in (7.62 m) |
| Gradeability | 50 % |
| Stowed Height | 8.01 ft in (2.44 m) |
| Tailswing Radius | 3.91 ft in (1190 mm) |
| Turning Radius - Inside | 9.26 ft in (2820 mm) |
| Turning Radius – Outside Minimum | 16.57 ft in (5050 mm) |
Platform
| Max Platform Height | 66.02 ft in (20120 mm) |
| Overall Length (Stowed , Guardrail Folded) | 33.93 ft in (10.34 m) |
| Overall Width (Stowed) | 8.01 ft in (2.44 m) |
| Platform Rotation | 170 degrees |
| Jib Length | 5 ft in (1.53 m) |
| Local Floor Load-With Rated Load | 145 psi (999.74 kPa) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Maximum No Of Persons | 2 |
| Max Working Height | 72.02 ft in (21950 mm) |
Engine
| Diesel Engine Power | 74 hp (55.2 kw) |
| Dual Fuel Engine Power | 82 hp (61.2 kw) |
Operational
| Operating Weight | 26700.2 lb (12111 kg) |
| Fuel Capacity | 45 gal (170 L) |
| Hydraulic System Fluid Capacity | 59 gal (223 L) |
| Max Speed | 4.5 mph (7.3 km/h) |
| Tire Size | 15 x 19.5 |
| Tire Fill/Type | Air Filled |
