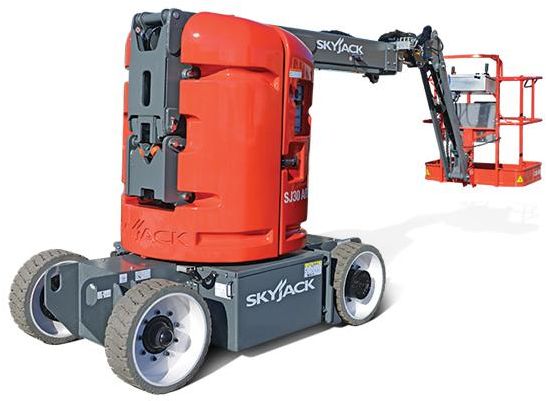

Skyjack SJ30 AJE
Contents:
Dimensions
| Wheelbase | 5.42 ft in (1650 mm) |
| Ground Clearance | 4 in (101.6 mm) |
| Transport Height- Maximum | 7.85 ft in (2.39 m) |
| Transport Length, Maximum | 13.42 ft in (4.09 m) |
| Turning Radius - Inside | 4.99 ft in (1520 mm) |
| Turning Radius – Outside Minimum | 10.6 ft in (3230 mm) |
| Up And Over Height | 13.1 ft in (3.99 m) |
| Gradeability - Counterweight Facing Down | 35 degrees |
| Stowed Height | 6.6 ft in (2.01 m) |
| Horizontal Reach | 20.51 ft in (6.25 m) |
Platform
| Max Platform Height | 29.76 ft in (9070 mm) |
| Wind Rating | 28 mph (45.07 km/h) |
| Jib Length | 4.11 ft in (1.25 m) |
| Jib Range Of Motion - Horizontal | 180 degrees |
| Jib Range Of Motion - Vertical | 142 degrees |
| Local Floor Load-With Rated Load | 464 psi (3199.17 kPa) |
| Max Driving Speed (Raised) | 0.4 mph (0.65 km/h) |
| Max Driving Speed (Stowed) | 3 mph (4.83 km/h) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Max Working Height | 35.77 ft in (10900 mm) |
| Overall Length (Stowed , Guardrail Folded) | 17.92 ft in (5.46 m) |
| Overall Width (Stowed) | 3.91 ft in (1.19 m) |
Operational
| Operating Weight | 12264.4 lb (5563 kg) |
| Tire Size | 22 x 7 x 12 |
| Tire Fill/Type | Solid |
