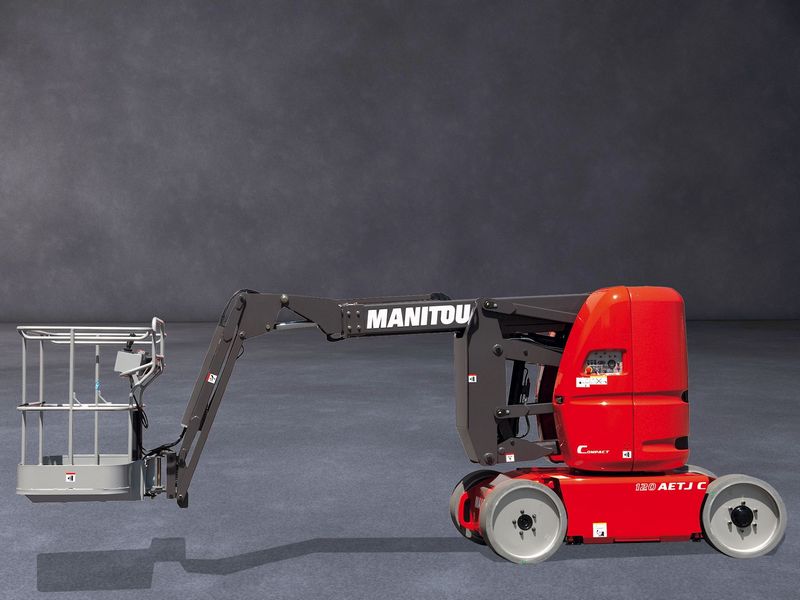

Manitou 120AETJC
Contents:
Dimensions
| Overall Length | 17.98 in (5480 mm) |
| Overall Width | 3.94 ft in (1200 mm) |
| Overall Height - Mast Lowered | 6.53 ft in (1990 mm) |
| Wheelbase | 5.42 ft in (1650 mm) |
| Ground Clearance | 3.94 in (100 mm) |
| Turning Radius | 10.96 ft in (3340 mm) |
Platform
| Max Platform Height | 32.65 ft in (9950 mm) |
| Max Horizontal Reach | 22.97 ft in (7000 mm) |
| Platform Rotation | 140 degrees |
| Platform Inner Length | 47.25 in (1200 mm) |
| Max Platform Weight Capacity | 440.93 lb (200 kg) |
| Max Working Height | 39.21 ft in (11950 mm) |
| Platform Inner Width | 37.8 in (960 mm) |
Engine
| Engine Make | 0 |
| System Voltage | 48 V |
| Number Of Batteries | 2 |
| Battery Amp Hours | 300 |
| Charger Amps | 45 amps |
Operational
| Operating Weight | 14440.3 lb (6550 kg) |
| Max Speed | 3.8 mph (6 km/h) |
