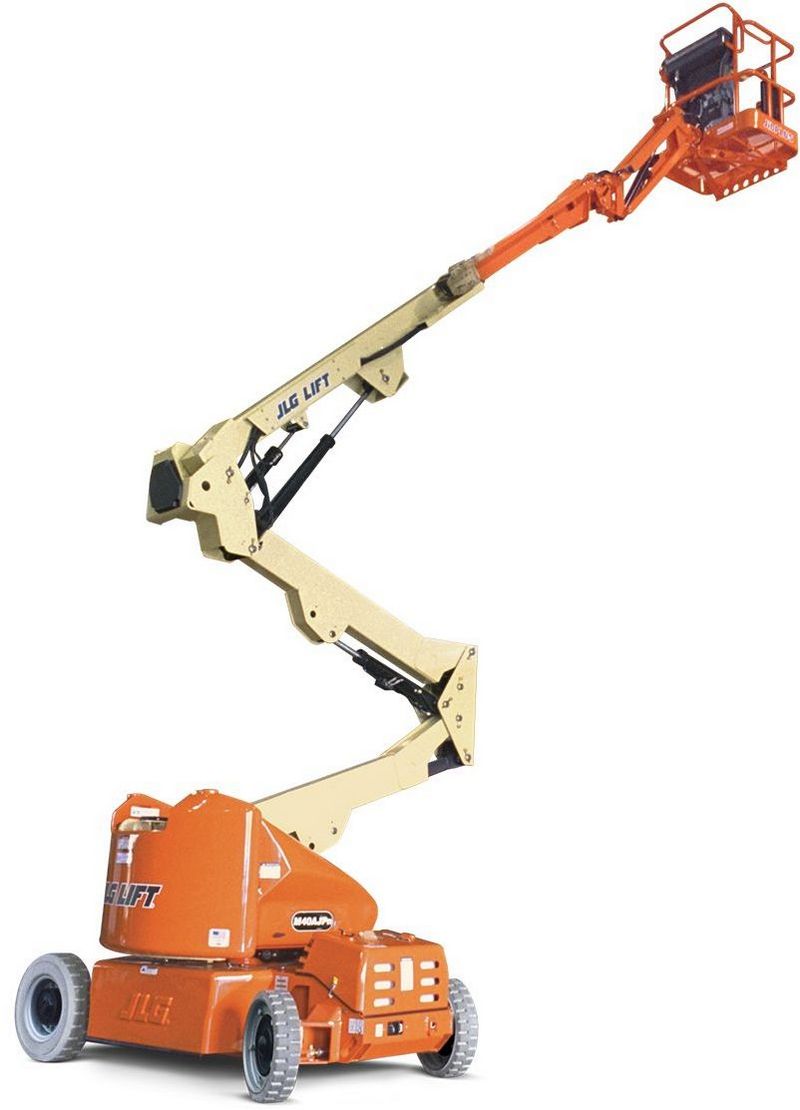

JLG M400AJPN
Contents:
Dimensions
| Overall Length | 22 ft in (6.71 m) |
| Overall Width | 4.12 ft in (1252.73 mm) |
| Wheelbase | 6.7 ft in (2042.16 mm) |
| Ground Clearance | 5 in (127 mm) |
| Overall Height | 6.6 ft in (2011.68 mm) |
| Tire Size | 22 x 6 x 17.75 Non-marking (F), 25 x 7 x 12 Non-marking (R) |
| Up And Over Height | 21.6 ft in (6.59 m) |
| Platform Dimension A | 2.6 ft in (0.8 m) |
| Platform Dimension B | 4 ft in (1.22 m) |
| Tailswing Radius | 4 ft in (1219.2 mm) |
Platform
| Max Platform Height | 40 ft in (12192 mm) |
| Max Horizontal Reach | 30.9 ft in (9418.32 mm) |
Electrical System
| Batteries | 8 x 6V, 370 amp-hr |
Engine
| Engine Make | Kubota |
| Gross Power | 6.7 hp (5 kw) |
| Fuel Tank Capacity | 4 gal (15.2 L) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 15200 lb (6894.7 kg) |
| Hydraulic System Fluid Capacity | 4 gal (15.2 L) |
Performance
| Drive Speed | 3 mph (4.9 km/h) |
| Swing | 360 degrees |
| Swing Type | Non-Continuous |
| Gradeability | 30 % |
| Platform Capacity | 500 lb (226.8 kg) |
| Jib - Range Of Articulation | 144 degrees |
| Turning Radius - Outside (Axles Retracted) | 10.4 ft in (3.2 m) |
