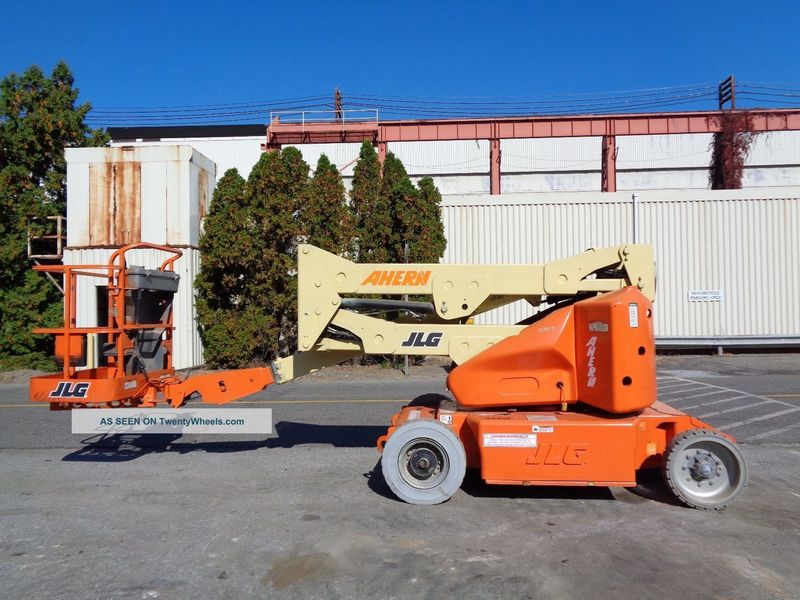

JLG E400A
Contents:
Dimensions
| Overall Length | 18.05 in (5500 mm) |
| Overall Width | 5.75 ft in (1750 mm) |
| Overall Height - Mast Lowered | 6.57 ft in (2000 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Ground Clearance | 8.67 in (220 mm) |
| Turning Radius | 10.34 ft in (3150 mm) |
Platform
| Max Platform Height | 40 ft in (12190 mm) |
| Max Horizontal Reach | 21.17 ft in (6450 mm) |
| Platform Inner Width | 29.93 in (760 mm) |
| Platform Inner Length | 48.04 in (1220 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Platform Rotation | 180 degrees |
Engine
| System Voltage | 48 V |
| Number Of Batteries | 8 |
| Battery Amp Hours | 370 |
Operational
| Operating Weight | 12099 lb (5488 kg) |
| Max Speed | 3.3 mph (5.2 km/h) |
| Tire Size | 240/55-17.5 |
| Tire Fill/Type | pneumatic |
