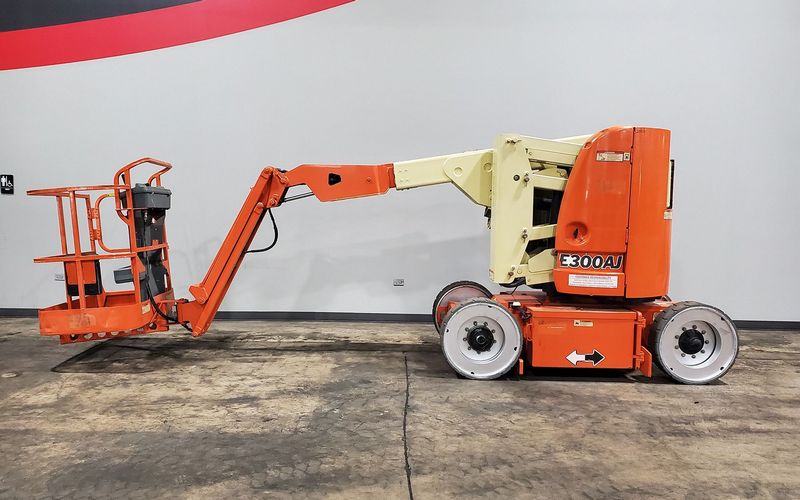

JLG E300AJ
Contents:
Dimensions
| Overall Length | 18.2 in (462.28 mm) |
| Overall Width | 4 ft in (1219.2 mm) |
| Overall Height - Mast Lowered | 6.7 ft in (2042.16 mm) |
| Wheelbase | 5.5 ft in (1676.4 mm) |
| Ground Clearance | 4 in (101.6 mm) |
| Platform Dimension A | 2.6 ft in (0.8 m) |
| Turning Radius | 10.2 ft in (3108.96 mm) |
| Platform Dimension B | 4 ft in (1.22 m) |
Platform
| Max Platform Height | 30.2 ft in (9204.96 mm) |
| Max Horizontal Reach | 20.3 ft in (6187.44 mm) |
| Platform Capacity - Unrestricted | 500 lb (226.8 kg) |
| Platform Inner Length | 48.04 in (1220 mm) |
| Platform Inner Width | 29.93 in (760 mm) |
| Platform Rotation | 180 degrees |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Max Working Height | 13.2 ft in (4023.36 mm) |
Engine
| System Voltage | 48 V |
| Number Of Batteries | 8 |
| Battery Amp Hours | 370 |
Operational
| Operating Weight | 15060 lb (6831.2 kg) |
| Hydraulic System Fluid Capacity | 3.1 gal (11.4 L) |
| Max Speed | 3 mph (4.8 km/h) |
| Tire Size | 25 x 7 x 12 |
| Tire Fill/Type | Non-marking |
Performance
| Drive Speed | 3 mph (4.9 km/h) |
| Swing | 350 degrees |
| Gradeability | 25 % |
| Platform Capacity | 500 lb (226.8 kg) |
| Jib - Range Of Articulation | 144 degrees |
