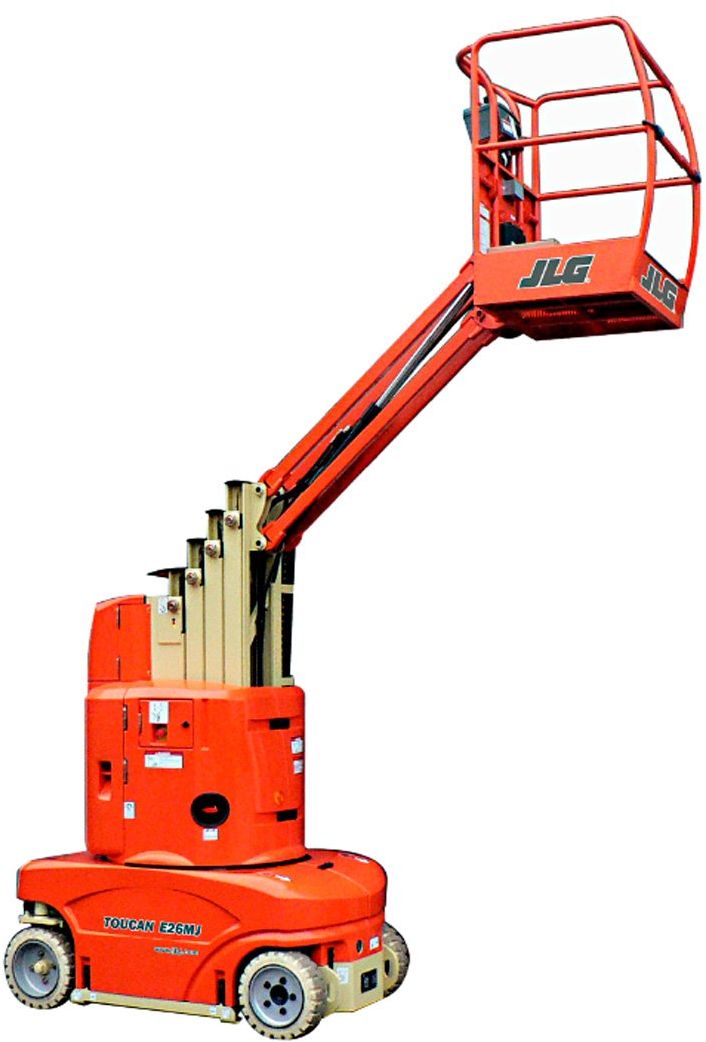

JLG E26MJ
Contents:
Dimensions
| Overall Length | 9.59 in (2920 mm) |
| Overall Width | 3.25 ft in (990 mm) |
| Overall Height - Mast Lowered | 6.53 ft in (1990 mm) |
| Wheelbase | 4.27 ft in (1300 mm) |
| Ground Clearance | 3.15 in (80 mm) |
| Turning Radius | 5.75 ft in (1750 mm) |
Platform
| Max Platform Height | 25.99 ft in (7920 mm) |
| Max Horizontal Reach | 8.99 ft in (2740 mm) |
| Platform Inner Length | 35.44 in (900 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Platform Inner Width | 27.56 in (700 mm) |
Engine
| Engine Make | 0 |
| System Voltage | 24 V |
| Battery Amp Hours | 620.0000 |
| Charger Amps | 55 amps |
Operational
| Operating Weight | 7716.2 lb (3500 kg) |
| Max Speed | 2.5 mph (4 km/h) |
| Tire Size | 16x5x10.5 |
