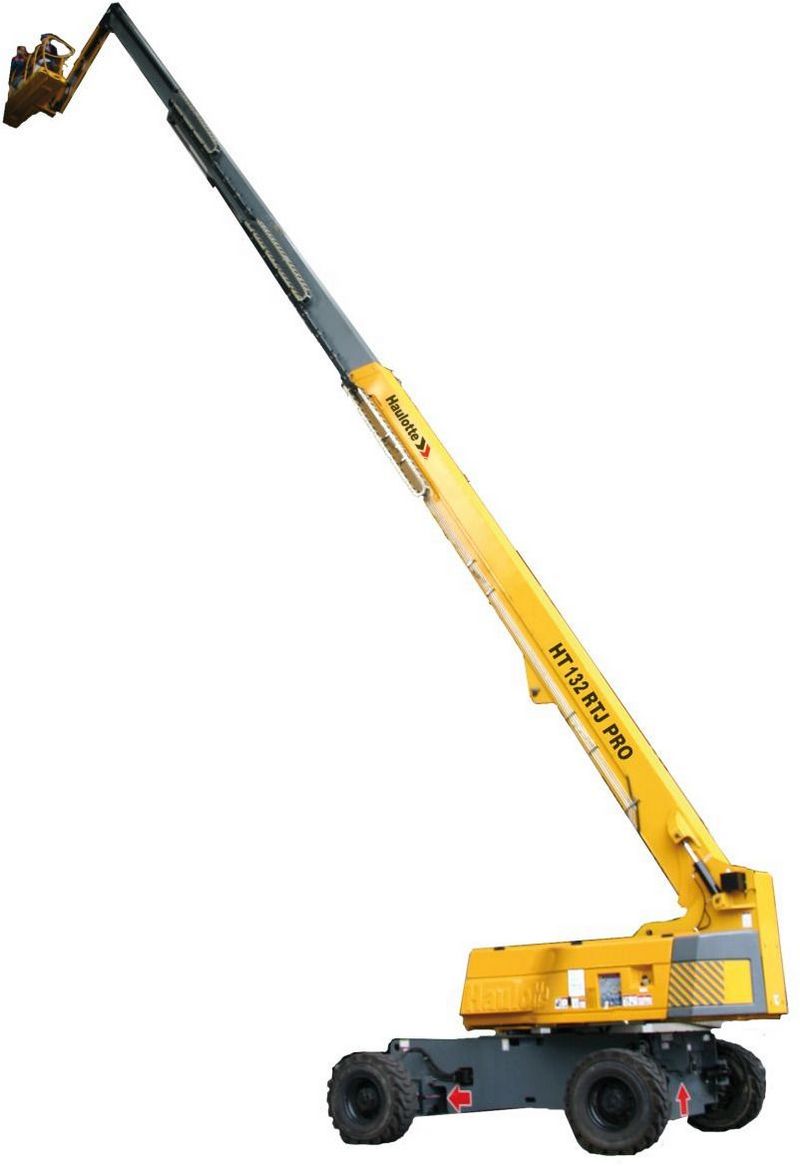

Haulotte HT132 RTJ PRO
Contents:
Dimensions
| Overall Length | 584.4 in (14843.76 mm) |
| Overall Width | 8.2 ft in (2499.36 mm) |
| Overall Height - Mast Lowered | 10 ft in (3048 mm) |
| Wheelbase | 11.6 ft in (3535.68 mm) |
| Ground Clearance | 15 in (381 mm) |
| Gradeability | 40 % |
| Tailswing Radius | 9.2 ft in (2804.16 mm) |
| Turning Radius | 18.11 ft in (5516.88 mm) |
Platform
| Max Platform Height | 131.12 ft in (39962.33 mm) |
| Max Horizontal Reach | 66.3 ft in (20208.25 mm) |
| Max Working Height | 138.5 ft in (42214.8 mm) |
| Platform Rotation | 180 degrees |
| Max Platform Weight Capacity | 500.2 lb (226.89 kg) |
Engine
| Engine Make | Perkins |
| Gross Power | 84.9 hp (63.4 kw) |
Operational
| Operating Weight | 47187 lb (21403.7 kg) |
| Max Speed | 3.1 mph (5 km/h) |
| Tire Size | 445/65-22.5 |
